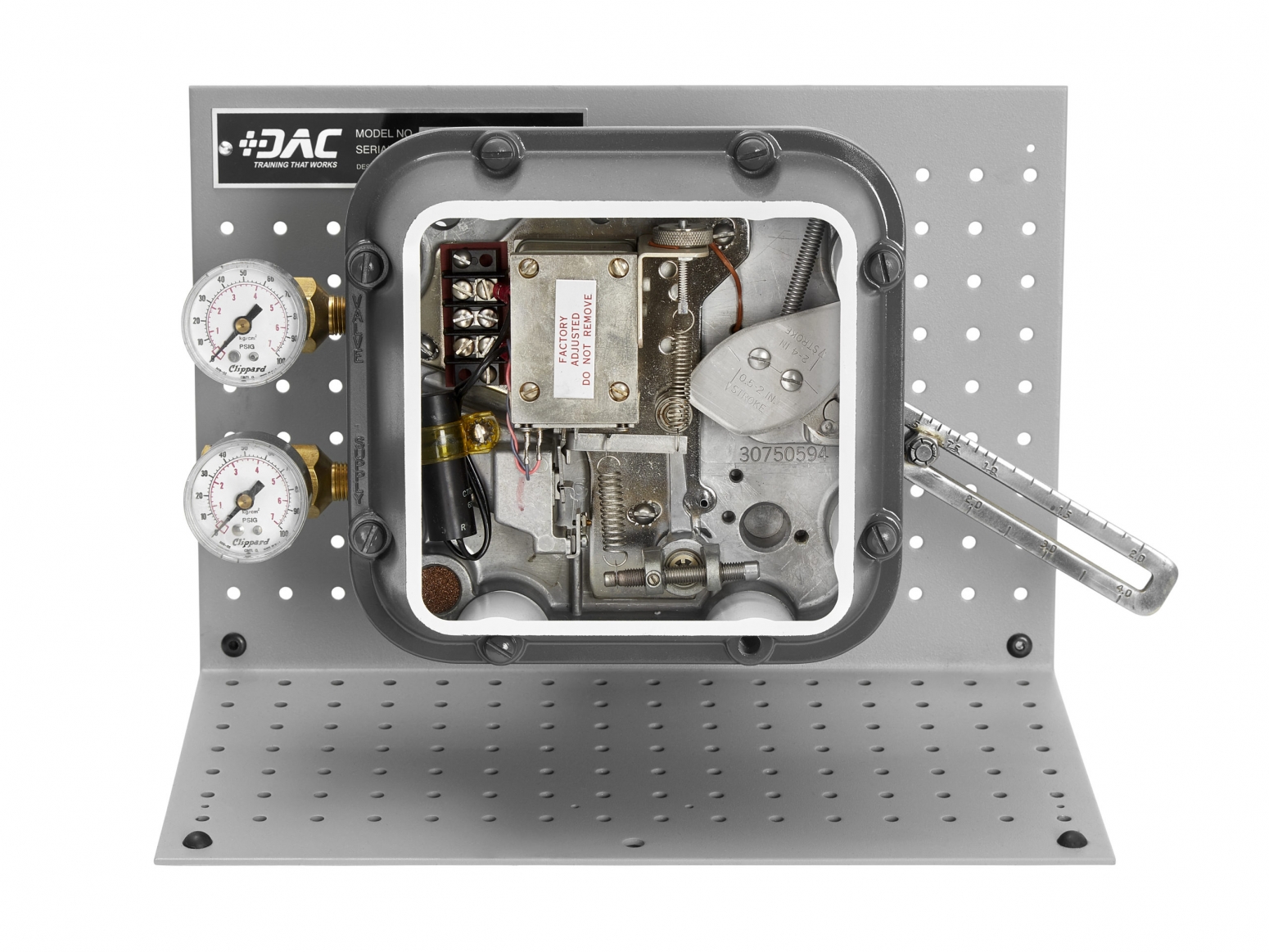

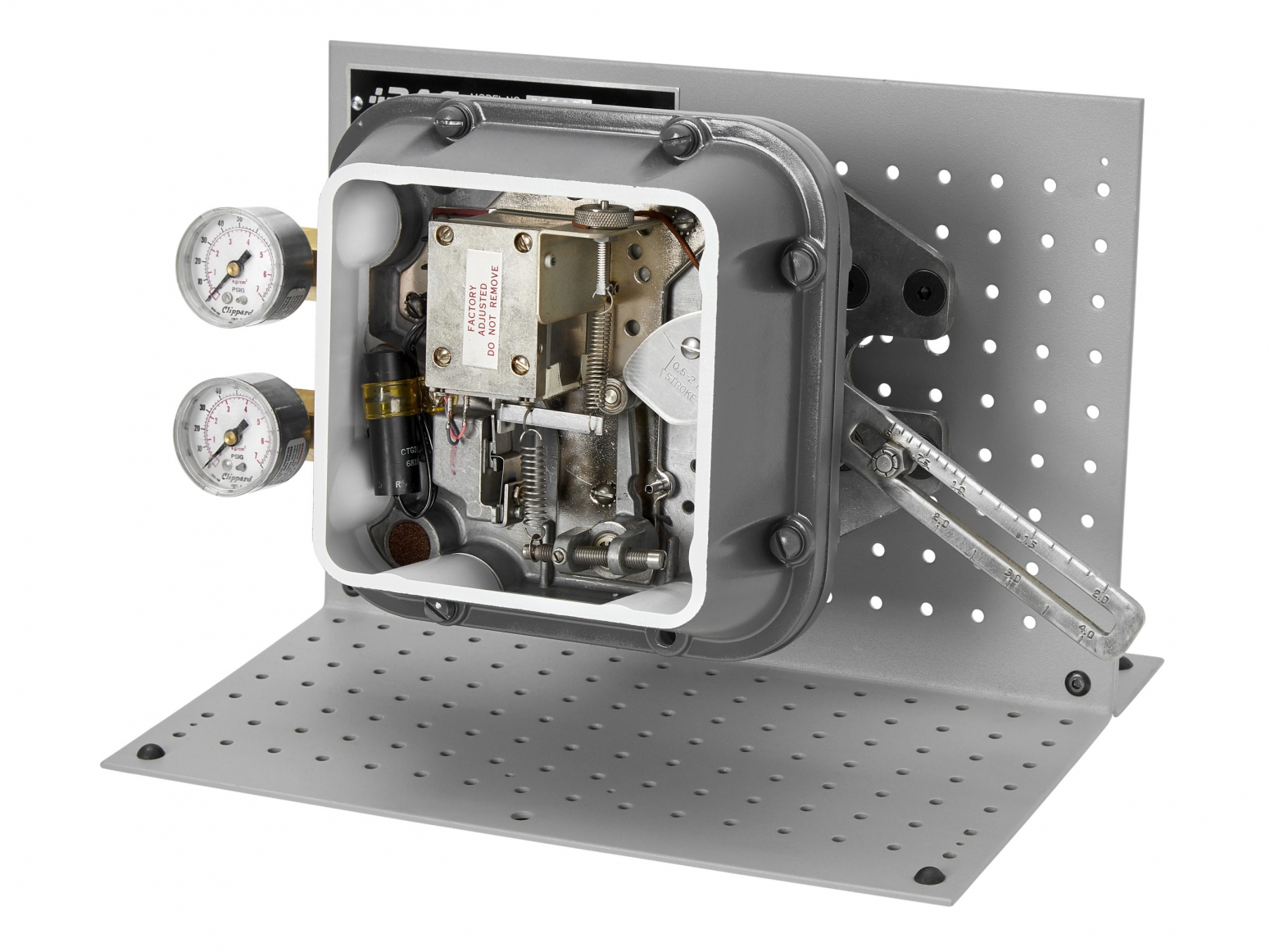

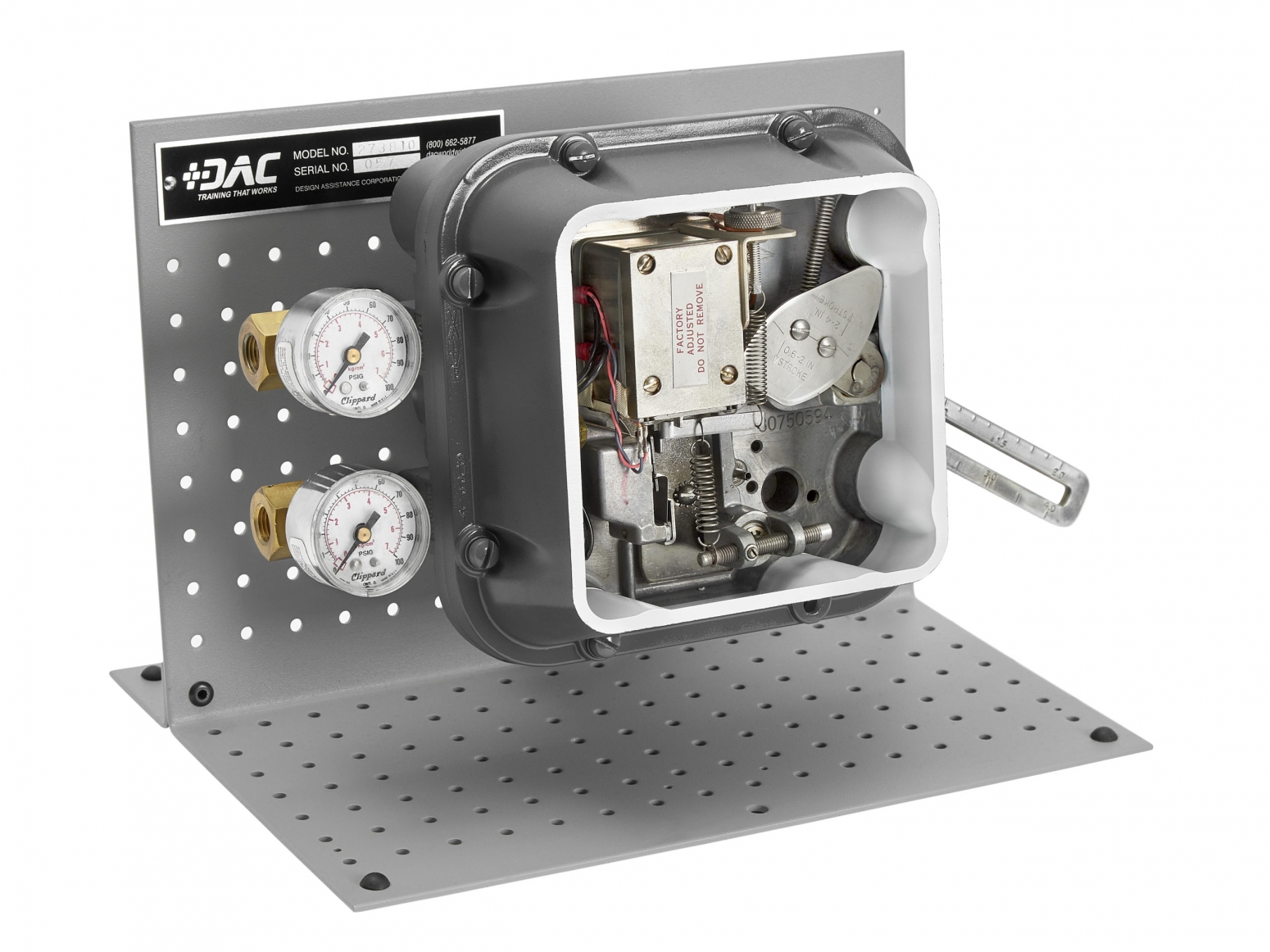

Control Valve Positioner Cutaway

DAC Worldwide’s Control Valve Positioner Cutaway (273-810) is a detailed, sectioned, professionally-crafted control valve positioner cutaway that depicts a common control valve positioner.

This common piece of pneumatic control hardware is found in manufacturing facilities, petrochemical plants, refineries, and other similar industrial, commercial, and oil and gas applications. The cutaway includes a formed-steel mounting assembly, allowing for stand-alone display, bench-top mounting, or mounting on specialized DAC Worldwide mounting benches and support structures.

Through careful sectioning, the complete internal configuration of the device can be seen while also allowing for disassembly for a more compete inspection. All primary features have been retained and showcased.

Features

• Sectioning of actual industrial component (common US industrial component brands and models are chosen for industrial training relevancy)
• Restoration and cleaning of all primary component parts where necessary
• Multiple sectioned (cut away) areas showcasing primary components
• 14-gauge, formed-steel, powder-coated mounting baseplate/stand
• Provision for mounting on related DAC Worldwide bench, workstation, and storage products
• Packaging for shipment via parcel service or motor freight
