Downsized Control Valve Cutaway

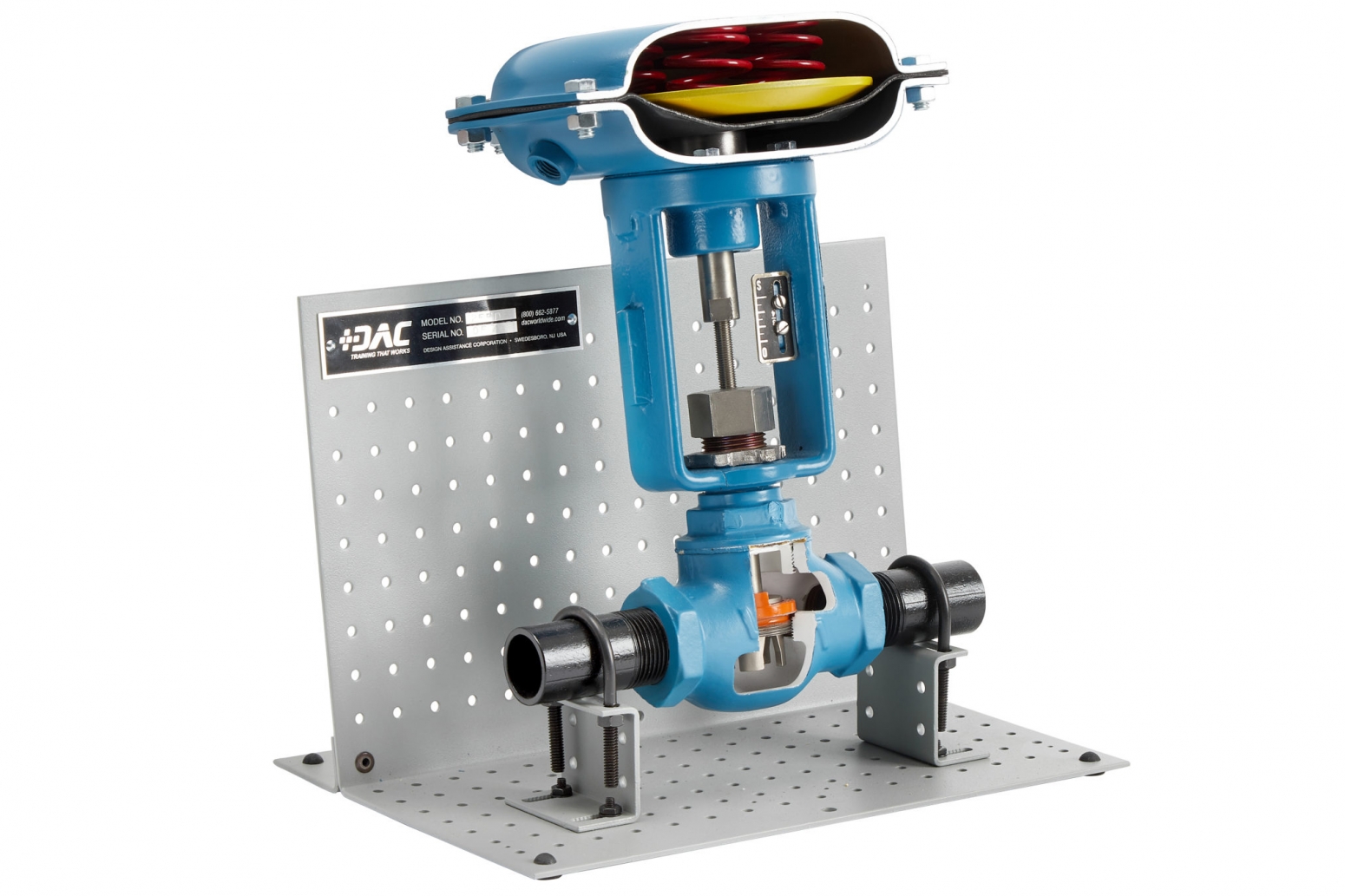

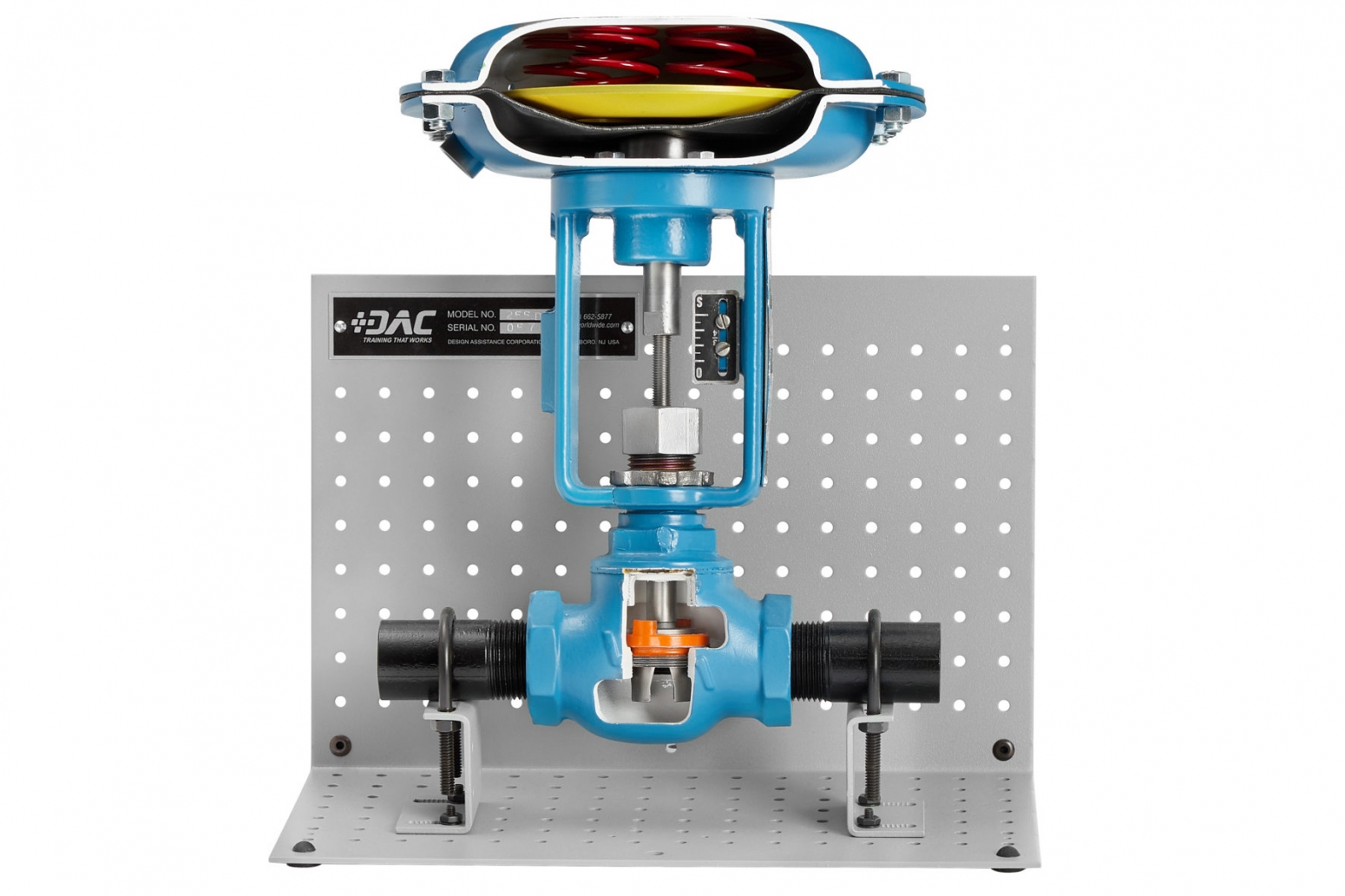

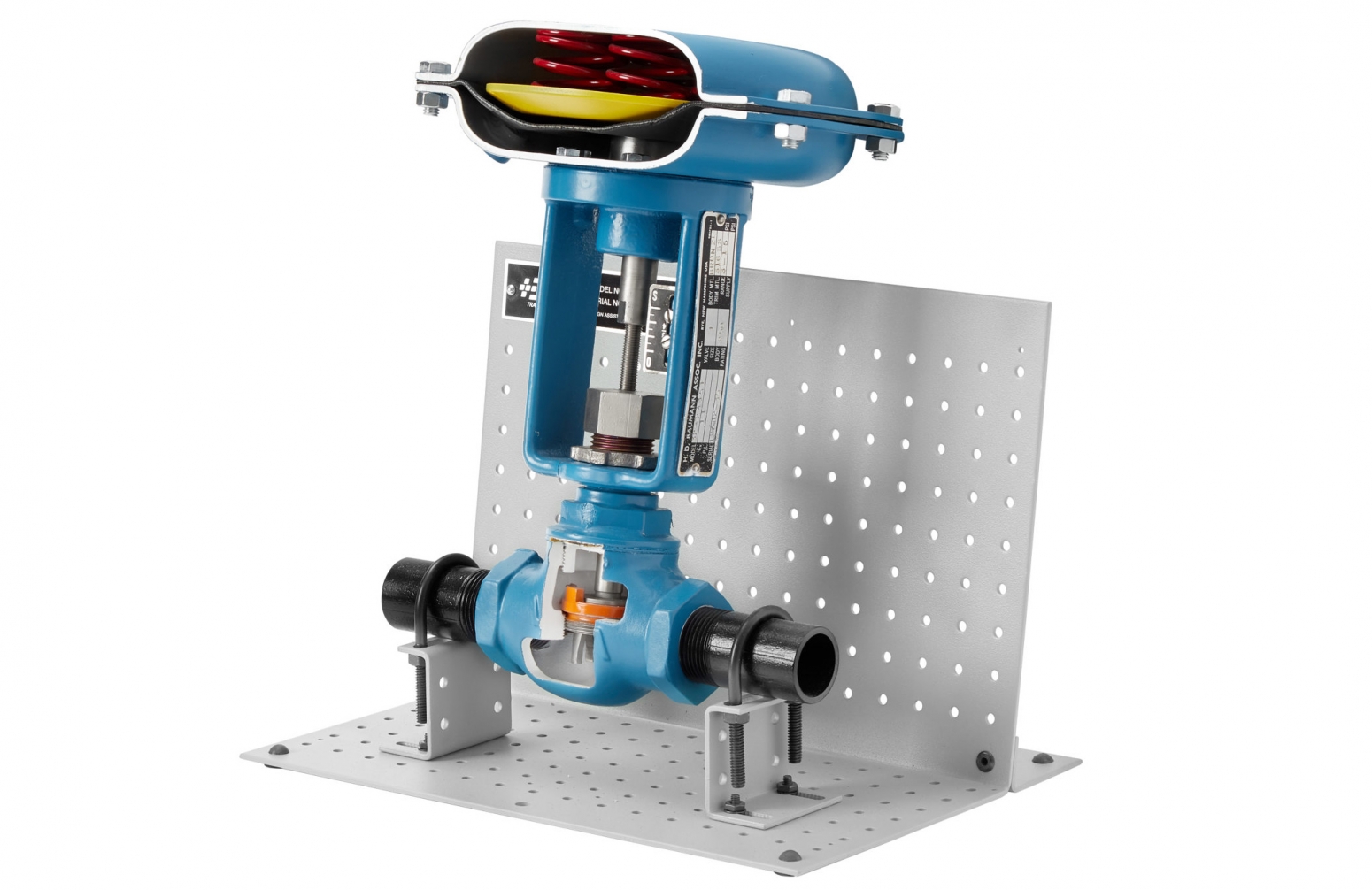

DAC Worldwide's Downsized Control Valve Cutaway (255D) is an economical yet realistic, sectioned valve sample that allows for convenient classroom training in the operation, construction, and maintenance of a pneumatically-operated, control valve. Through carefully planned sectioning and color-coding, the complete internal configuration of the valve is exposed and showcased. Seal features, actuator components and hardware locations have been retained, allowing for “hands-on” maintenance training.

Features and Specifications

• Sectioning of actual hardware (common industrial control valve makes and models chosen for industrial relevancy)
• Cleaning, priming, and painting using a high-durability, urethane coating
• Color-coding of valve body, internal surfaces, seat, and closure devices, using contrast colors
• Powder-coated internal surfaces
• Replacement, plated hardware, where necessary
• All gaskets, seals, and seats shown
• 13-Gauge, formed-steel, mounting stand and support Assembly with provision for tabletop mounting
• Provision for mounting on related bench, workstation, and storage rack products
