Fixed Head Bulk Storage Tank Model

Oil Production Hands-On Trainer

Item Number:

295-203

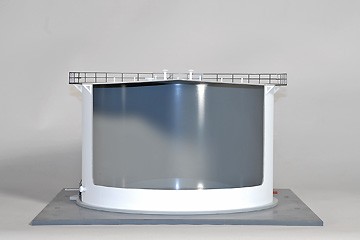

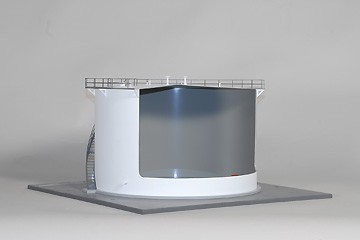

DAC Worldwide's Fixed Head Bulk Storage Tank Model (295-203) is a highly-detailed scale model of a common conical-roof, fixed-head storage tank as used in the storage of crude oil and other products within refineries, petrochemical plants, and other processing, production, and storage applications. This model reflects common designs and is a complete, to-scale replication. The primary shell includes a cutaway allowing for all internal features to be seen.

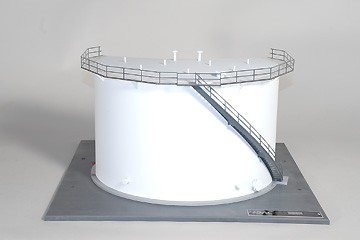

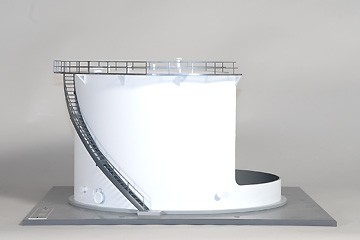

The model features exact "to-scale" construction throughout with a 15" primary tank diameter and a representative concrete foundation. Exterior detail includes access stairs, process connections, manways, vapor recovery connections, level transmitters, vents, plate detail, and access platforming. Interior detail includes a representative drain/sump.

The model is painted using a high-durability coating. It comes mounted on a durable PVC baseplate with provision for tabletop mounting or mounting on related DAC Worldwide display racks.

Features & Specifications

Exact "to-scale" construction throughout; 15-in. primary tank diameter
Representative concrete foundation
Exterior detail including access stairs, process connections, manways, vapor recovery connections, level transmitters, vents, plate detail and access platforming
Interior detail including; representative drain/sump
Durable PVC baseplate with provision for tabletop mounting and mounting on related DAC display racks
Painting using a high-durability coating
