Gate Valve Cutaway

Realistic, Hands-On Industrial Valve Skill Training

Item Number:

251

DAC Model 251 Gate Valve Cutaway, 2-2.5 Inch

Realistic, Hands-On Industrial Valve Skill Training

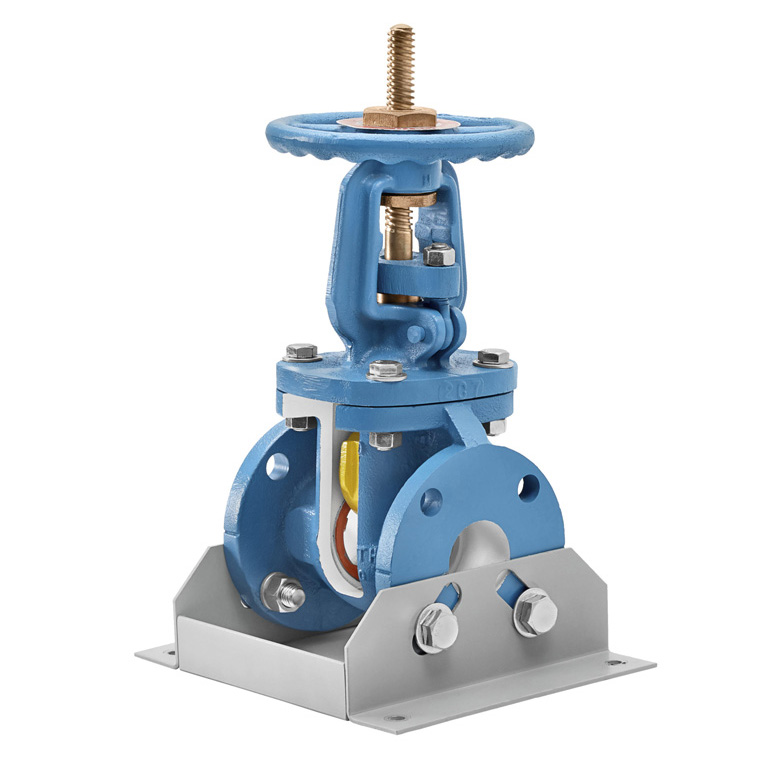

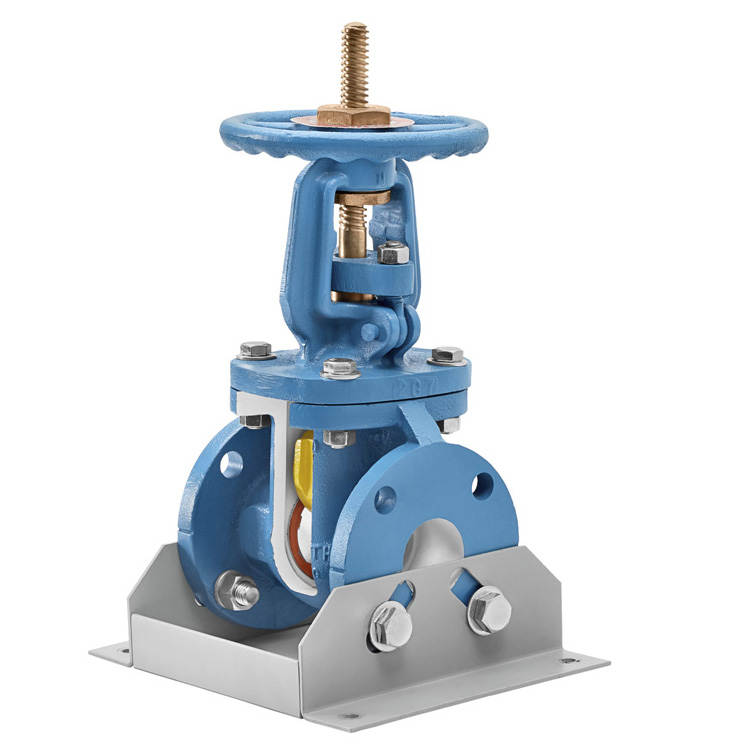

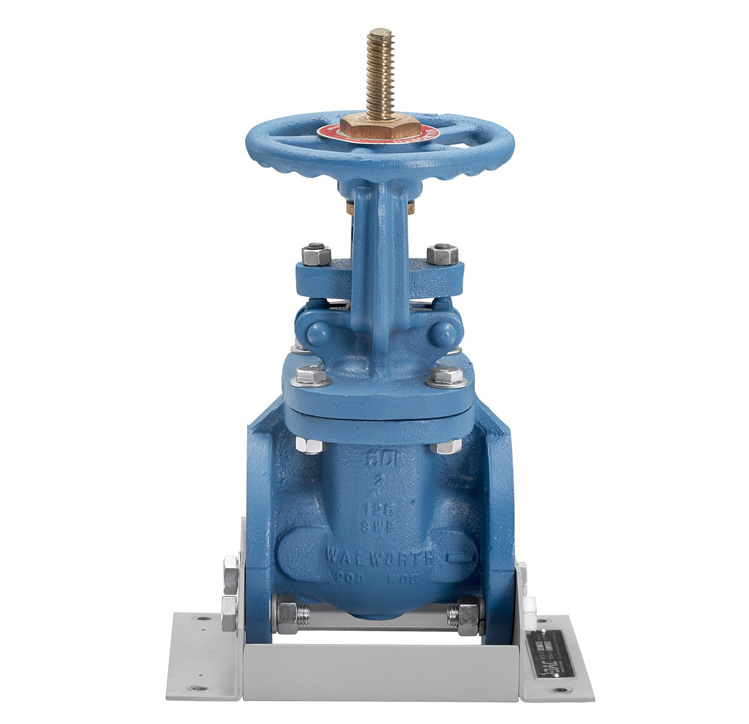

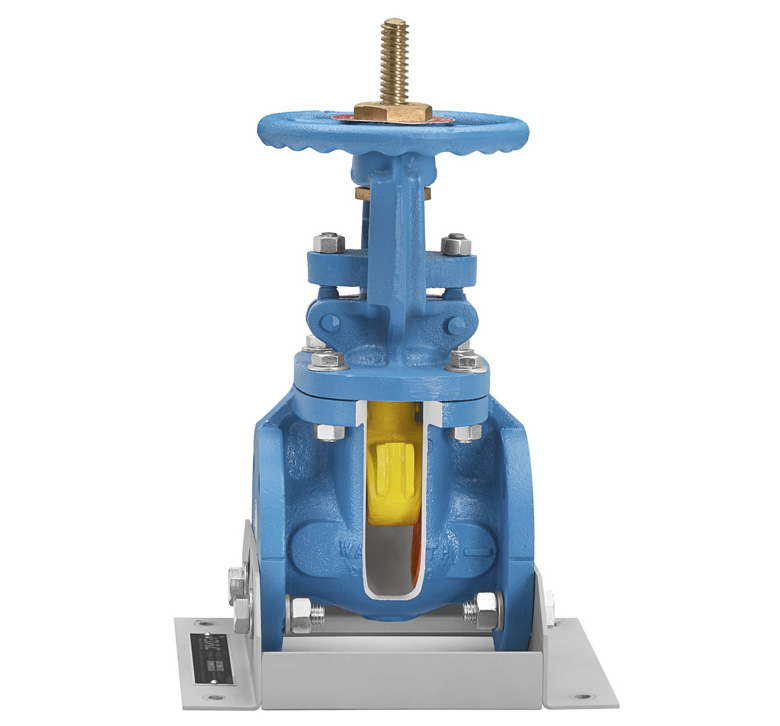

DAC Worldwide’s Gate Valve Cutaway (251) features an actual industrial gate valve with the complete internal configuration exposed and seal features and hardware locations retained to provide gate valve maintenance training, as well as shows how the valve operates and how it is constructed.

Gate valves are used as isolating valves for fully open or fully closed service in a piping system. Also referred to as sluice valves, the gate faces on these valves – normally wedge-shaped to apply pressure on the sealing surface – open by turning a wheel on a valve stem and thus move out of the fluid path. Advantages include that it is easy to shutoff, allows fluid to flow in either direction, allows for only minimal pressure loss, and –because they fully open –makes it possible to use a pipe-cleaning pig.

This industrial piping training component is a carefully sectioned gate valve that features color-coding of valve body, internal surfaces, seat, and closure devices, using contrast colors.

Features and Specifications

Sectioning of actual hardware (common valve makes and models chosen)
Cleaning, priming, and painting using a high-durability, urethane coating.
Color-coding of valve body, internal surfaces, seat, and closure devices, using contrast colors.
Replacement, plated hardware, where required.
Welded, formed-steel, mounting stand with provision for tabletop mounting.
Provision for mounting on related bench, workstation and storage rack products.
