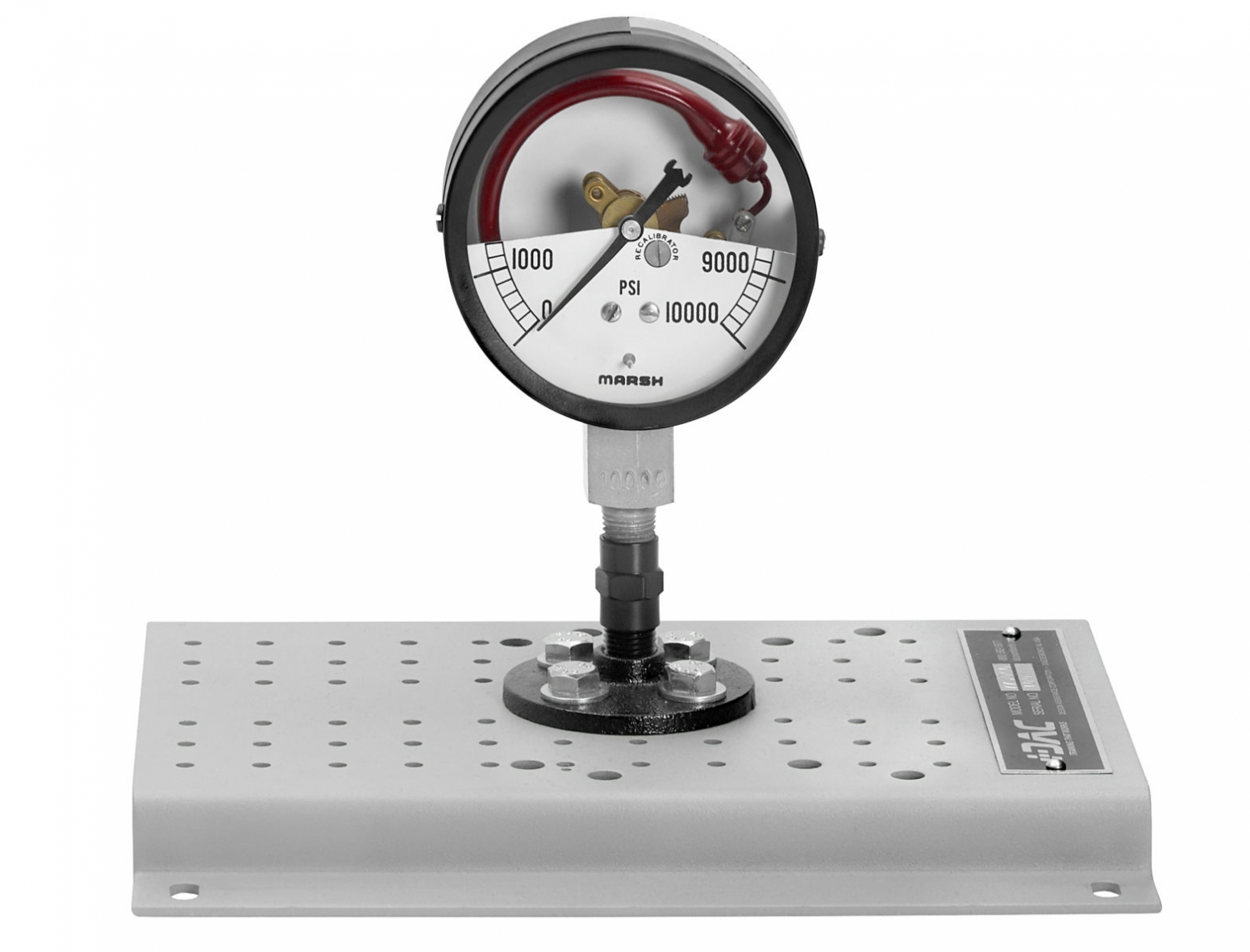

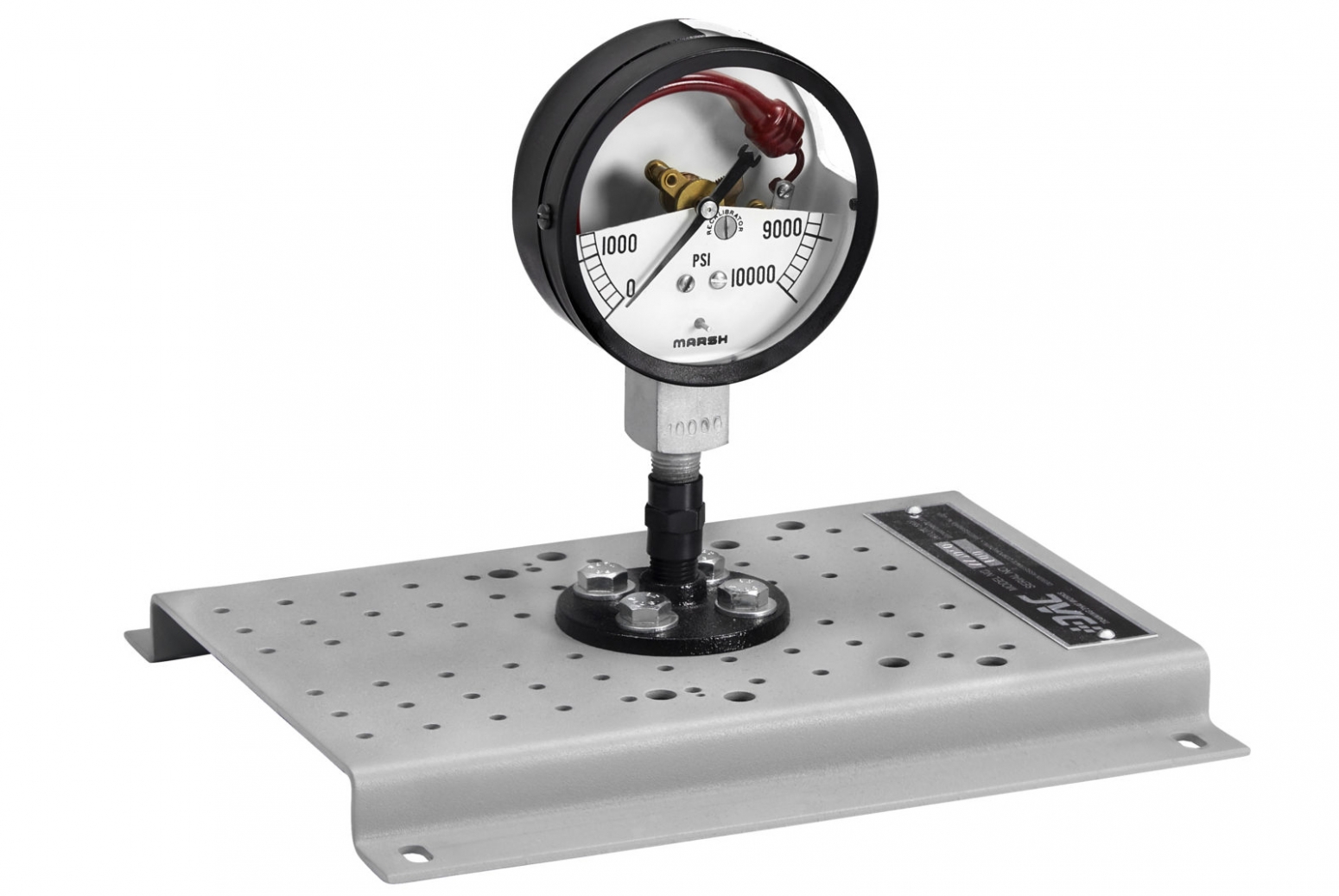

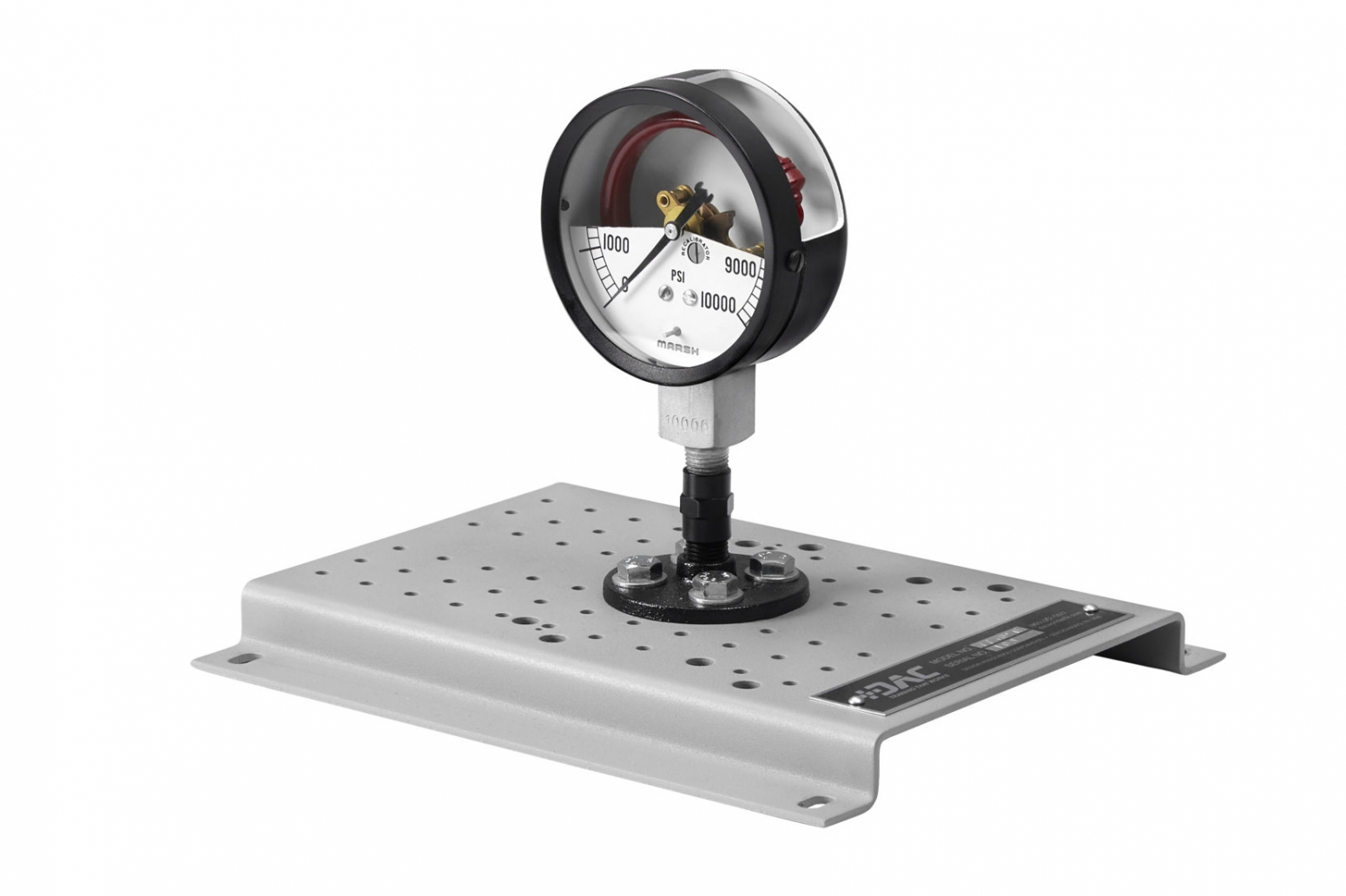

DAC Worldwide's Hydraulic Pressure Gauge Cutaway (773-050) is a Bourdon tube-type pressure widely used in industrial liquid and gas processes to monitor and document system pressures. This professionally crafted, sectioned industrial-quality pressure gauge supports pressure measurement and gauge calibration training in many hydraulic and related process training applications. The full-size, fully-detailed example gives learners a first-hand view into a component that is found in various applications worldwide.
This is a large, commonly-encountered gauge from a well-known manufacturer. The high-quality, high-pressure component is chosen for industrial relevancy and maximum visibility. Thanks to carefully planned sectioning, the complete internal configuration of this gauge can be seen while allowing for disassembly for complete inspection and convenient classroom training in the operation, construction, and maintenance of this common hydraulic equipment.
This Hydraulic Pressure Gauge Cutaway provides a realistic training-introduction to industrial Bourdon tube-type gauges, making introductory courses in gauge maintenance and operation more productive, realistic, and memorable for learners. The Hydraulic Pressure Gauge Cutaway components are industrial-grade, mimicking what students might encounter on the job. The device also sits on a 13-gauge steel baseplate, allowing for stand-alone display, benchtop mounting, or mounting on specialized mounting benches.
The cutaway features carefully-planned cutaway areas that are individually mounted and possess the ability to be removed from the baseplate for convenient classroom use. All of the cutaway’s components are also visible and have been retained, enhancing students’ visual learning. Replacement hardware is provided where appropriate. A strategically-selected viewing area is cut away, providing a full view of the primary rotary geared movement and the fabricated Bourdon tube.
The equipment used within the trainer is cleaned, primed, and painted using a high-endurance urethane coating, providing durability to stand up to frequent use. In addition, all of the parts are color coded to enhance the learning process.
DAC Worldwide’s Hydraulic Filter Cutaway (773-055) is a professionally-crafted sectioned example of a commonly-encountered sump-type hydraulic filter used in hydraulic systems to maintain oil quality and machine health. The training aid enhances classroom training in hydraulic system design, maintenance, troubleshooting, and preventive/predictive maintenance.
DAC Worldwide's Hydraulic Sequence Valve Cutaway (773-213) is a sectioned hydraulic sequence valve example with a two-stage balanced piston design, which incorporates a commonly-encountered valve type manufactured by an industry leader.
DAC Worldwide’s Progressive Cavity Pump Cutaway – Moyno/Roper (278-195) depicts a sectioned industrial progressing cavity pump that allows for convenient classroom or laboratory training in the operating characteristics, construction, and maintenance of these common process pumps used in a variety of sectors.
