Induced Draft Cooling Tower Model

Cooling Tower Maintenance Training
DAC Models
Heat Transfer & Steam
Item Number:
298
DAC Technical Training Models
DAC Worldwide Technical Models
DAC Heat Transfer & Steam
DAC Worldwide Technical Trainers

DAC Worldwide’s Induced Draft Cooling Tower Model (298) is a highly-detailed scale model of a common open circuit, induced draft, cooling tower, supporting training in the operation and maintenance of cooling towers, as found in utility systems within both industrial facilities and commercial installations.

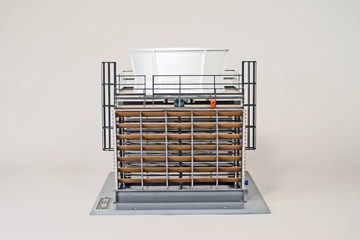

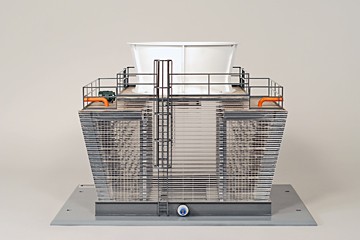

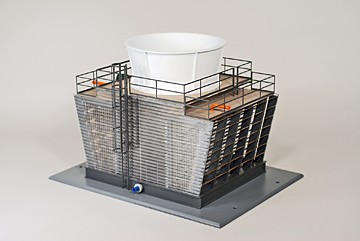

Based on common cooling tower designs similar to those manufactured by Baltimore Aircoil Company, Marley, and others, the product is a complete "to-scale" replication of common cooling tower in use today. Based on a basic opencircuit, induced draft design, the model includes detailing of primary internal components, visible through a transparent acrylic wall and side louvers.

This teaching aid complements training courses in industrial utility systems, refinery operations, and building maintenance.

Features & Specifications

  • Exact "to-scale" construction throughout.
  • Primary shell fabricated from gray ABS and clear acrylic, allowing view of internal components.
  • Exterior detail including fan stack, fan drive motor, air inlet louvers, hot water inlet and cold water outlet pipes, steel structural supports, corrugated siding, handrails, ladders, and access door. Tower size of 11" x 16" x 12".

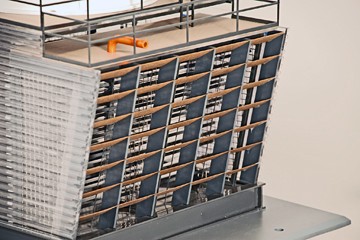

  • Interior detail including representative fan with reducing gear, distribution basin, "fill" drift (mist) eliminators, and cold water basin with sump.
  • Durable PVC baseplate with provision for tabletop mounting, and mounting on related DAC display products.
  • Packaging for shipment via Parcel Service or motor freight.
  • Product Dimensions 15" L x 20" W x 12" H
  • Weight 35 lbs.

More Information

Visit DAC Worldwide for more information.
