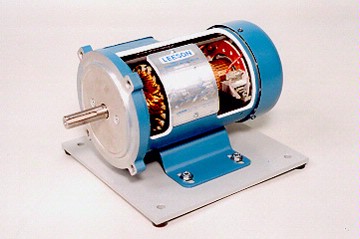

DAC Worldwide’s Permanent Magnet DC Motor Cutaway (273-940) is one of a series of related sectioned industrial motors. This DC permanent magnet motor cutaway supports industrial training activities related to electric motor types, as well as repair and troubleshooting. A fractional horsepower, industrial-duty motor is modified for training purposes.
DC permanent magnet motors are encountered in many industrial applications and are commonly the motive force in applications requiring high torque at a range of operating speeds. Common applications include battery-driven devices, power tools, conveyors, and more.
A full-length shell and magnet cutaway unveils the complete internal configuration of the motor, while showcasing key features like the field poles, field windings, armature, commutator, contacts/brushes, wiring connections, and rotor design.
The cutaway includes a formed-steel mounting baseplate, allowing for stand-alone display, bench-top mounting, or mounting on specialized DAC Worldwide mounting benches and storage and support structures.
