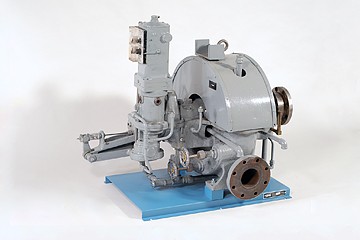

DAC Worldwide’s Steam Turbine Dissectible - Mechanical Drive Type (249-PAC) is a complete steam turbine training aid used on industrial equipment, such as pumps, fans, blowers, and air compressors in industrial services. The fixture allows for convenient training in the disassembly, maintenance and re-assembly.
Using a steel baseplate and industry-grade aluminum components, the equipment provides a variety of training scenarios to aide learners in becoming better prepared for the tasks they will encounter on the job. This mechanical training system includes an actual industrial steam turbine, which was originally manufactured by Worthington, Elliott, Coppus, Terry, or Dresser-Rand. Learners will use this dissectible to study topics such as major components, operation of a steam turbine, troubleshooting, and much more.
DAC Worldwide’s hands-on dissectibles take learning to the next level, offering both visual and physical learning styles to appeal to a variety of learners.
This Steam Turbine Dissectible features a durable, flexible system mount, including a 7-gauge steel baseplate with provisions for tabletop mounting. Each of the turbine’s components have been professionally restored and repainted, and offer a technically-accurate, professionally-crafted product that is a complete to-scale replication of typical steam turbines found in industry
Along with the Steam Turbine Dissectible, the training package also includes a Heavy-Duty Product Support and Transport Cart (925). The trainer is a minimum 25 Hp motor to fully replicate what learners may see on the job.
A copy of this course’s Maintenance Manual is included with the purchase of a Steam Turbine Dissectible training aid. If you would like to inquire about purchasing additional Manufacturer’s Maintenance Manuals for your program, please contact your local DAC Worldwide Representative for more information.
