Sucker Rod Pump Model

Oil Production Training Aid

Item Number:

295-407

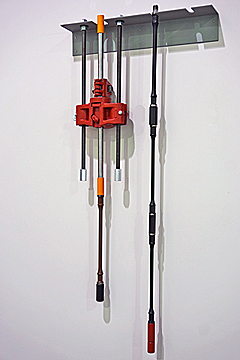

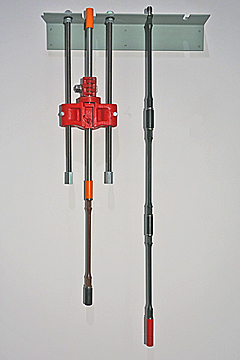

DAC Worldwide's Sucker Rod Pump Component Sample Set (295-407) is a wall-mountable set of actual and replica sucker rod pump rod string components that allows for realistic demonstration and training relating to the design, proper sequential assembly, handling, care, and application of individual components within a sucker rod string.

The component set includes actual steel API 11B design rod string components and shortened replica cast urethane sucker rods. The set also includes specialty string components such as shear couplings, rod protectors, crossover couplings, rod guides, and rod wipers. The assembly can be combined with optional components such as a replica rod rotator, a replica sucker rod wrench, a replica rod elevator, a complete downhole pump assembly, and a complete stuffing box assembly.

This component set supports realistic, instructor-led training relating to pumping unit operations as well as rod string design, maintenance, operational concerns, and downhole pump operating principles.

Features & Specifications

Full-size actual and replica components used throughout
Welded structural steel wall mounting bracket with simulated support bridal and provision for re-alignment in two directions

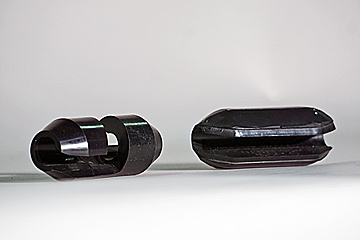

Actual downhole components include; 0.75-in. slim and full-diameter rod couplings, 7/8-in. coupling, crossover coupling, shear-pin coupling, two-bolt polished rod clamp, short polished rod, polished rod coupling, rod protectors, rod guides, rod wipers, and sample stuffing box packing

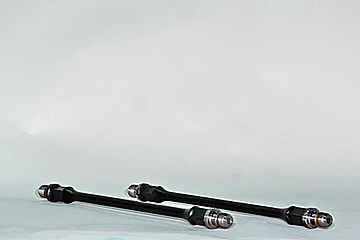

Replica, cast-urethane components including multiple shortened sucker rods of two sizes, pony rod, rod carrier bar and representative sinker bar
Provision for multiple options expanding the package’s scope
Reusable, rolling, molded, foam-lined, packing container
