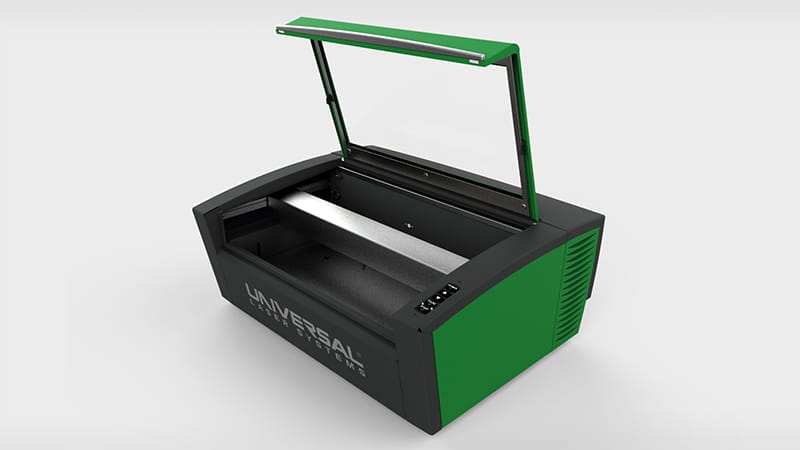

The VLS3.60DT is a compact and economical entry-level platform that offers a material processing envelope of 24" x 12" x 4" or 1,152 in³. The VLS3.60DT can be equipped with one of five 10.6µm CO2 laser sources ranging in power from 10 to 60 watts or one 9.3µm CO2 30 watt or 50-watt laser source.
Universal’s laser systems use high quality digital motors which don’t require expensive and complicated optical encoders to function, increasing reliability.
This feature maintains consistent energy density at any processing speed producing uniform marks and constant depth when cutting, marking and engraving.
Glass viewing windows creating a safe enclosure for laser processing.
Air Assist with Optics Protection creates positive air pressure around all optics and directs compressed air onto the surface of the material being processed. This compressed air keeps debris and particulate and fumes away from the optics, suppresses combustion of fumes, reduces accumulation of particulate on material surface, and increases cut quality on most materials.
Supported languages include English, German, Japanese, Spanish, French, Italian, and more.
An over temperature alarm installed in every Universal laser system monitors the temperature of the work area. If an unusually high temperature is detected the system will turn off the laser and trigger an audible alarm.
Our sealed, self-lubricating motion system bearings keep dust and debris out, resulting in a longer bearing life.
Durable belts provide a long life of reliable processing.
Because our laser sources are air-cooled, no complicated liquid cooling systems are required.
Our laser sources provide consistent power for predictably excellent processing results.
Universal’s lasers are all air cooled by computer-controlled fans. Fan speed is reduced or increased as a function of laser temperature, reducing noise levels when the lasers are being used on lower power settings.
A red laser pointer is installed for easy material alignment.
Laser sources can be freely interchanged between laser platforms.
Our patented laser sources use free-space gas slab resonators to produce an excellent quality beam with even power distribution and good near and far field characteristics.
Laser sources are pre-aligned at the factory and do not need to be internally realigned.
Because we manufacture our own lasers, Universal’s lasers can communicate their model number to the laser system CPU, allowing the laser system to automatically choose the right settings for a particular material based on available laser power.
Our standard warranty can be extended for up to half a decade of coverage.
Lasers are available at power levels from 10 to 150 watts.
All Universal laser platforms use interchangeable components, giving you the ability to tailor your system to fit your needs.

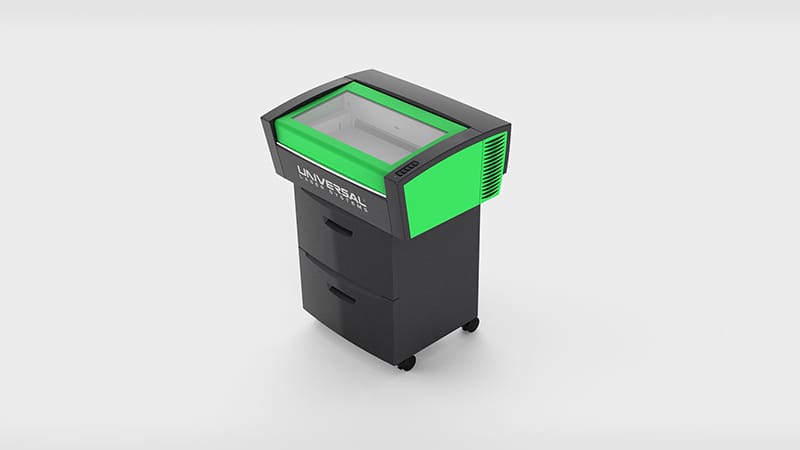

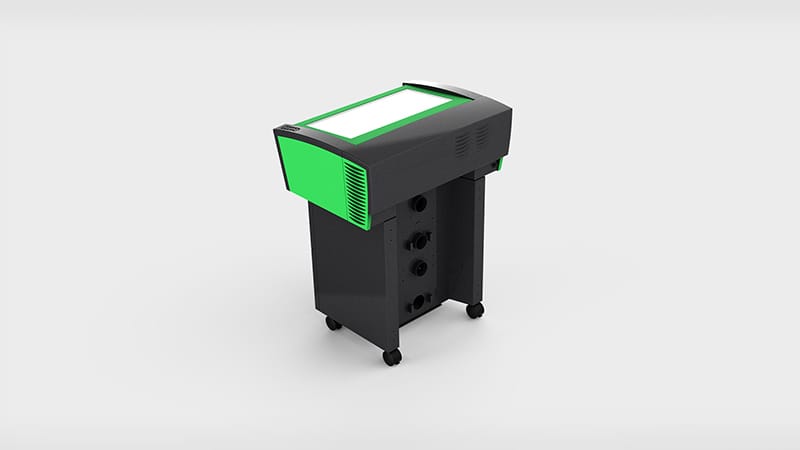

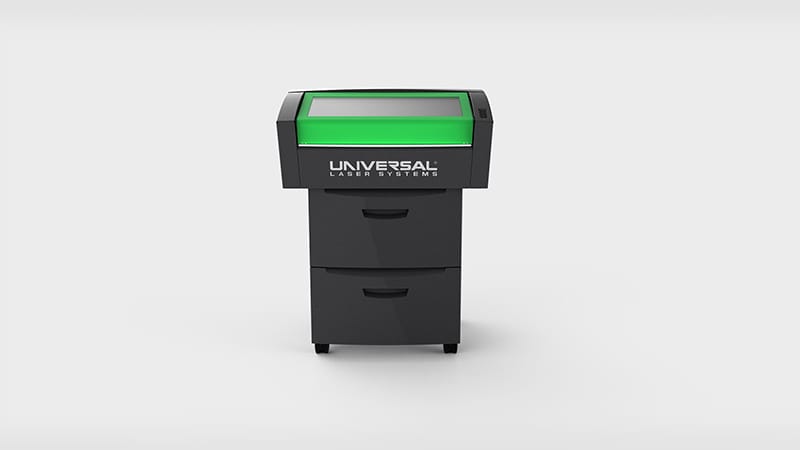

*Optional Air Cleaner Cart pictured.
The VLS2.30DT Desktop is a compact and economical entry-level platform. It offers a material processing envelope of 16" x 12" x 4" or 768 in³ and can be equipped with one 10.6µm CO2 laser source ranging in power from 10 to 30 watts or one 9.3µm CO2 30 watt laser source.
