DAC Worldwide’s ACR Suction Line Accumulator Cutaway (373-701) is a professionally-crafted, sectioned example of an industrial suction line accumulator. Designed primarily to protect system compressors from damaging surges of incoming liquid refrigerant and oil, the device also acts as a reservoir. It accumulates liquids carried in the suction stream while metering both the liquid refrigerant and oil back into the compressor, which ensures a trouble-free operation.
This economical sectioned example unveils the device’s complete internal design and operating principles. Multiple cutaways unveil all internal components, which enhances classroom training in HVAC system design, maintenance, troubleshooting, and preventive/predictive maintenance.
The full-size, fully-detailed example gives learners a first-hand view into a component that is found in various applications worldwide. This professionally-crafted component sample will enhance any training activity relating to residential, commercial, and industrial air conditioning and refrigeration systems.

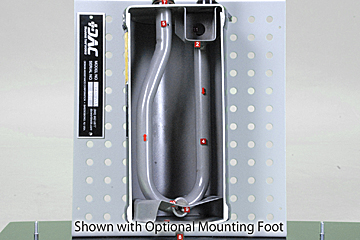

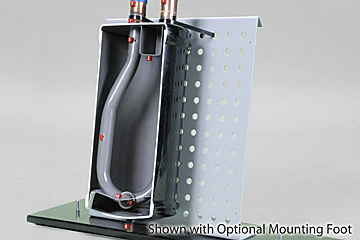

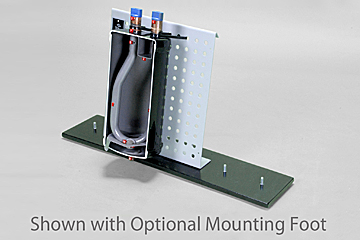

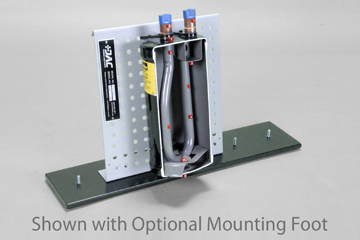

This ACR Suction Line Accumulator Cutaway provides a full cutaway view of an accumulator that exposes the complete internal components and operating principles. Color coding, flow arrows, and numbered call-outs combine to make the device more informative to the inquiring student and more useful to the instructor. The device can be used independently with an optional tabletop mounting foot, or combined with similar devices on optional display and storage frame assemblies.
Economically mounted on a modular display panel, this sample panel can be combined with a variety of optional benchtop display fixtures and storage structures possess the ability to be removed from the baseplate for convenient classroom use. All of the cutaway’s components are also visible and have been retained, enhancing students’ visual learning. This professionally-crafted teaching aid will support instructor-led training and independent student self-discovery in a variety of vocational and academic air conditioning and refrigeration programs.
Finally, the equipment used within the cutaway is cleaned, primed, and painted using a high-endurance urethane coating, providing durability to stand up to frequent use. In addition, all of the component parts are color-coded to enhance the learning process.
The ACR Suction Line Accumulator Cutaway is only one of DAC Worldwide’s expansive HVAC training cutaways, which includes an ACR Magnetic Check Valve Cutaway (373-510), a Condenser Pressure Control Valve Cutaway (KVR) (373-519), an ACR Liquid Line Filter/Drier Cutaway (373-601), a Sightglass with Moisture Indicator Cutaway (373-652), and more!
DAC Worldwide's HVAC cutaways enhance learning by providing a look inside components found in most HVAC systems including compressors, solenoids, and valves. On many of DAC Worldwide's cutaways, functionality has been retained and a hand wheel provided to demonstrate low-speed manual operation. Each cutaway is mounted on a modular, heavy-gauge steel baseplate and support assembly. For industrial training relevance, common models by well-known manufacturers are chosen. View the pdf to see the cutaway trainers available.
This economical, sectioned example showcases the device’s operating principle, internal components, and related installation concerns. Multiple cutaways unveil all internal components, which enhances classroom training in HVAC system design, maintenance, troubleshooting, and preventive/predictive maintenance.
This Condenser Pressure Control Valve (KVR) Cutaway provides a full cutaway view of a control valve that exposes the complete internal components and operating principles.
This Sightglass with Moisture Indicator Cutaway provides a full cutaway view of a sightglass that exposes the complete internal components and operating principles.
