Lever-Operated Dump Valve Cutaway

Oil Production Skills Training Cutaway

Item Number:

295-705

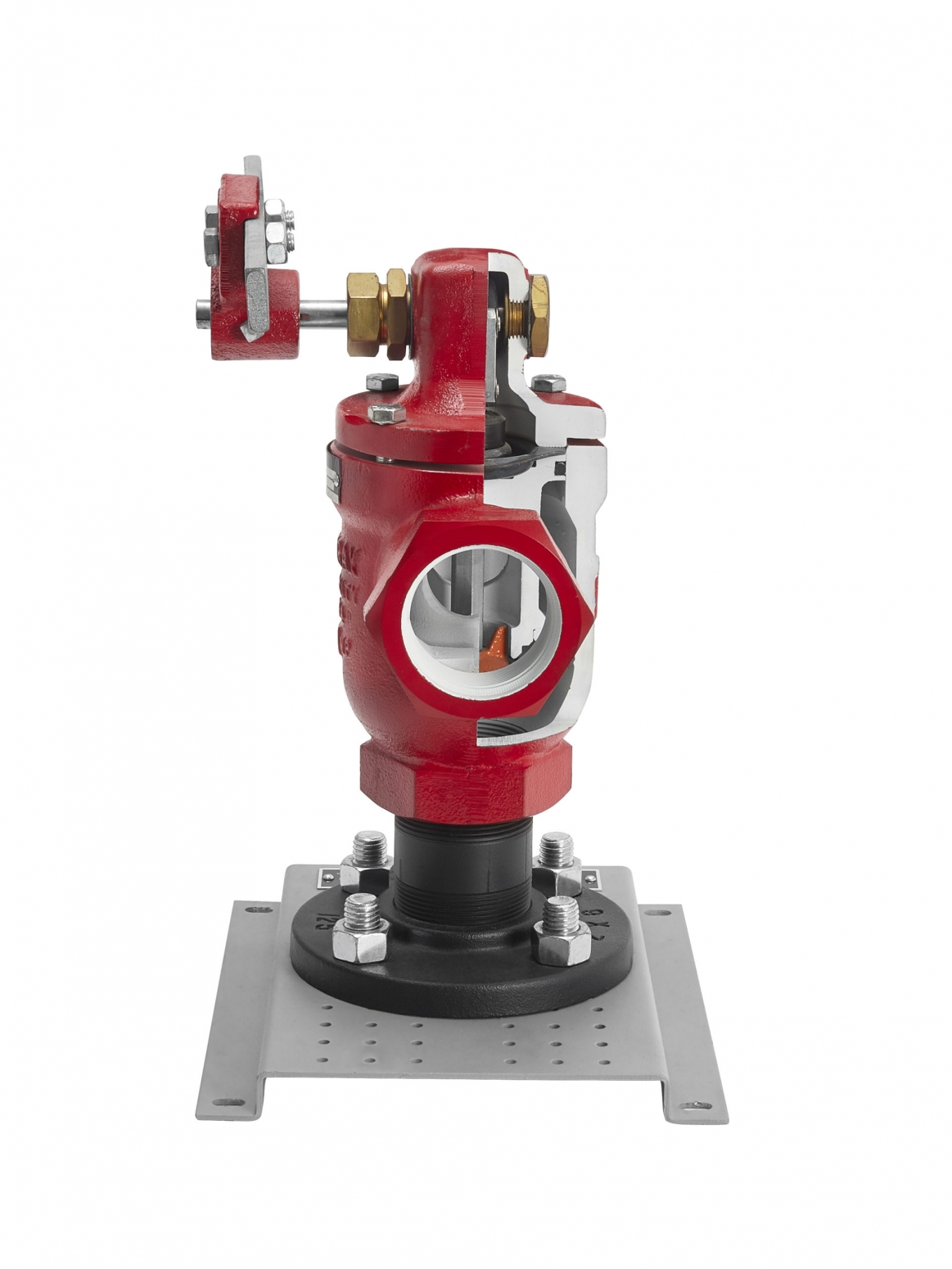

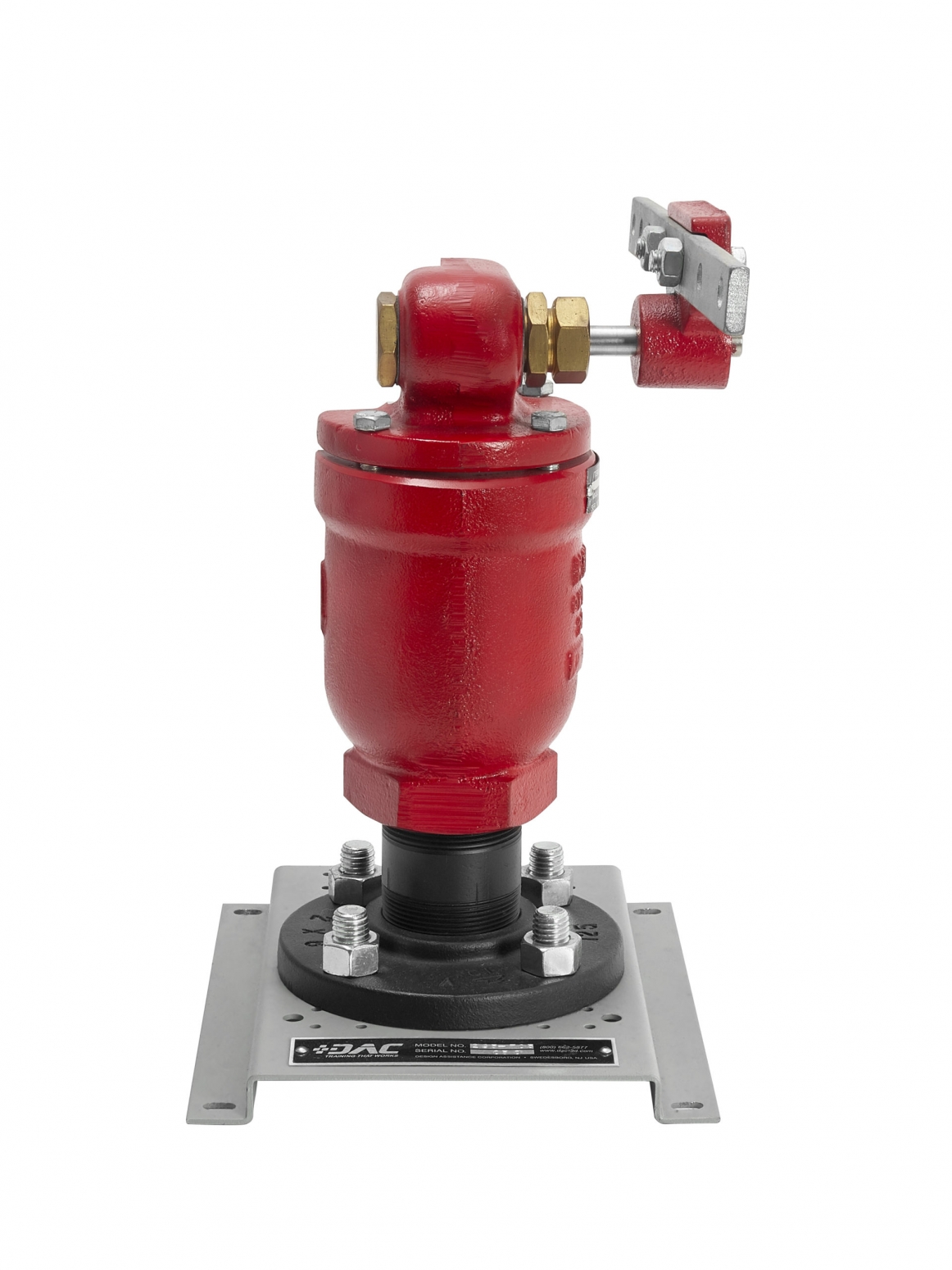

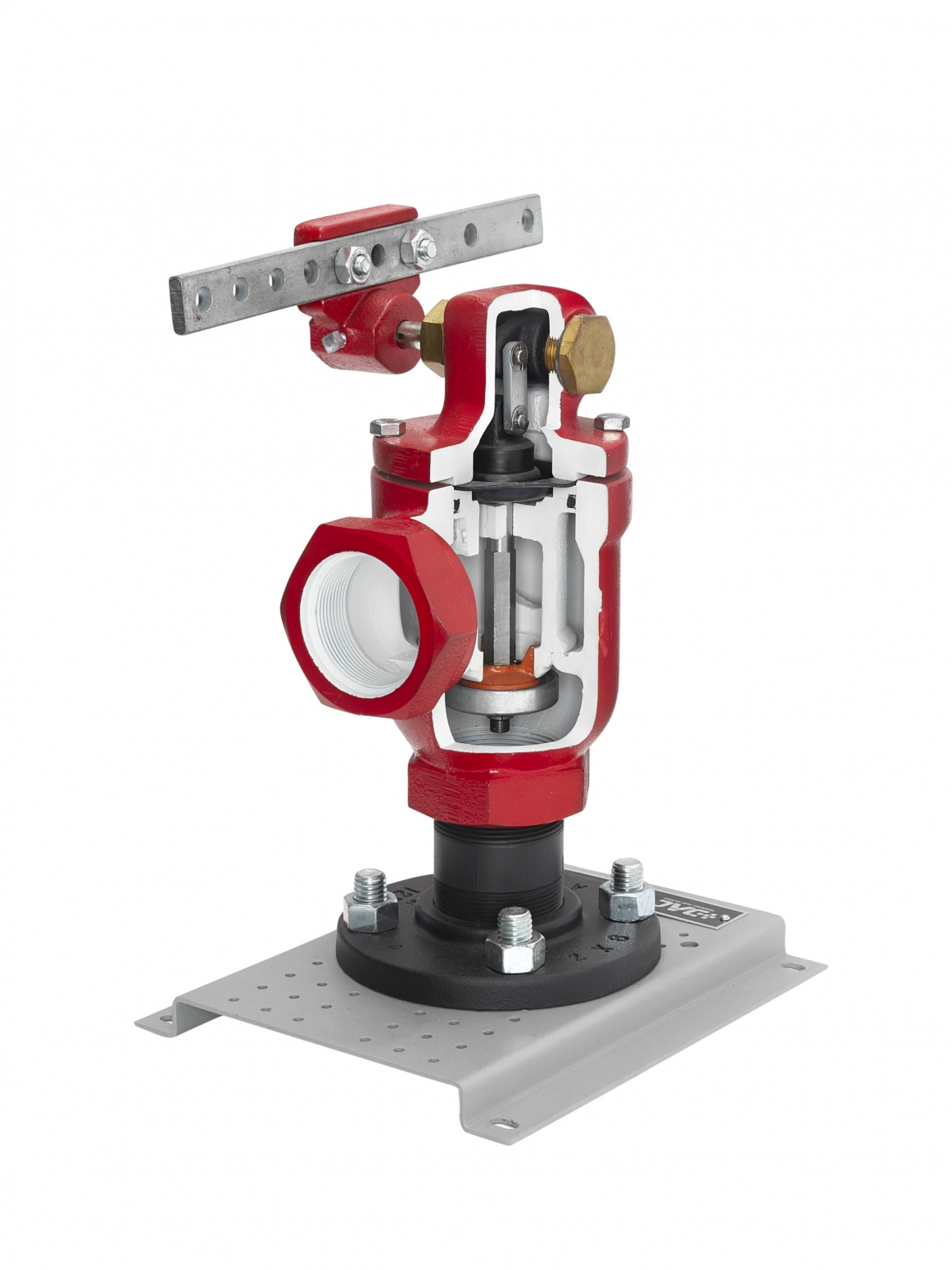

DAC Worldwide's Lever-Operated Dump Valve Cutaway (295-705) is a valve sample that allows for convenient classroom training in the operation, construction, and maintenance of an industrial lever-operated oil dump valve. Through carefully planned sectioning and color-coding, the complete internal configuration of the valve is exposed and showcased.

Seal features and hardware locations have been retained, allowing for hands-on training in maintenance. These valves, commonly used in oil & gas production applications relating to separators, treaters, and other accumulators, would be of interest to those involved in oil & gas production training.

Features & Specifications

Sectioning of actual hardware; common valve makes and models chosen
Cleaning, priming, and painting using a high-durability, urethane coating
Color-coding of valve body, internal surfaces, seat, and closure devices using contrast colors
Replacement, plated hardware where required
All seals and seats shown
Welded, formed-steel, mounting stand with provision for tabletop mounting
Provision for mounting on related bench, workstation, and storage rack products
Product Dimensions: 9" L x 12" W x 15" H

Recommended #902V - Mobile Display Stand
