Piston Check Valve Cutaway

Industrial Oil Production Skills Training

Item Number:

295-706

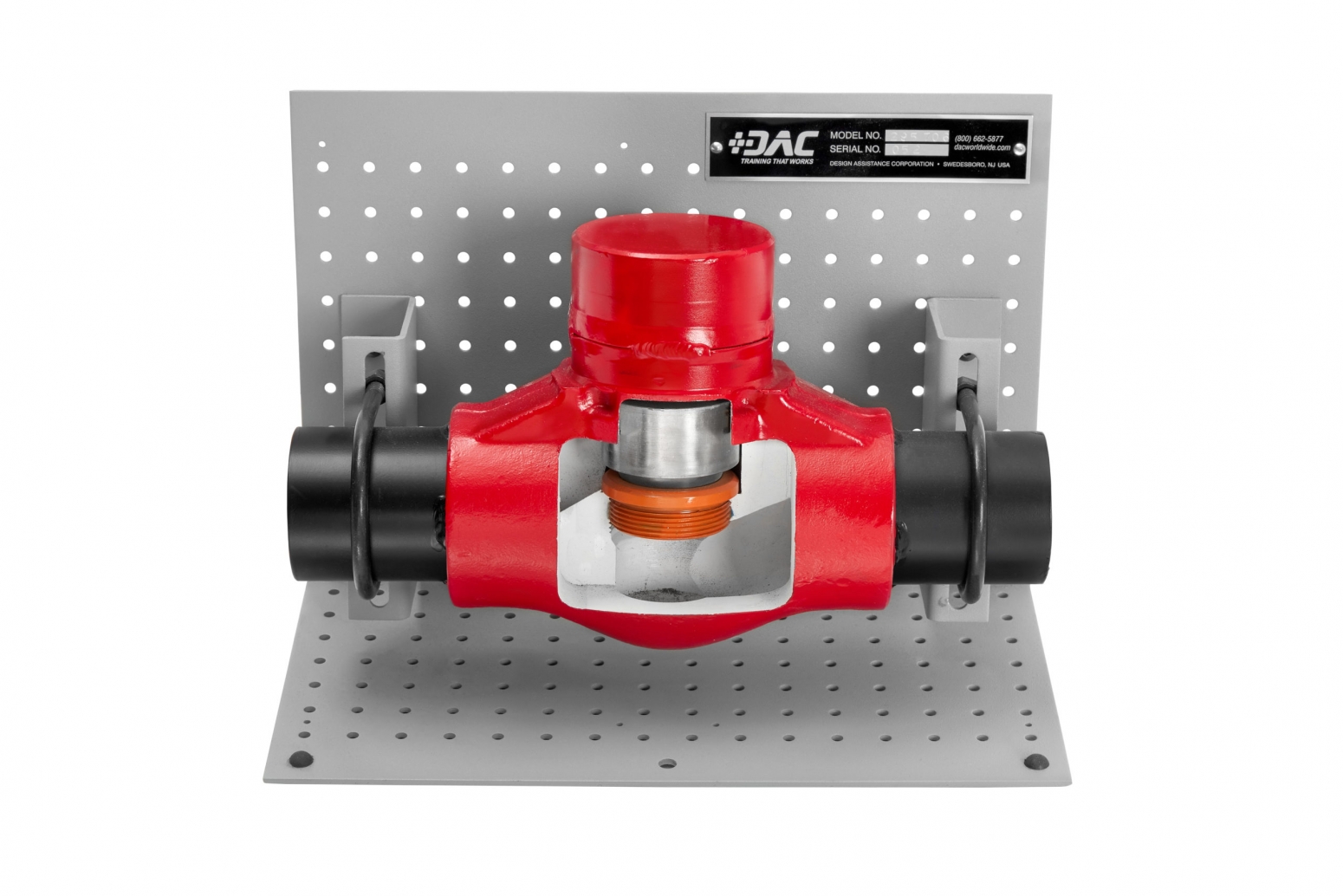

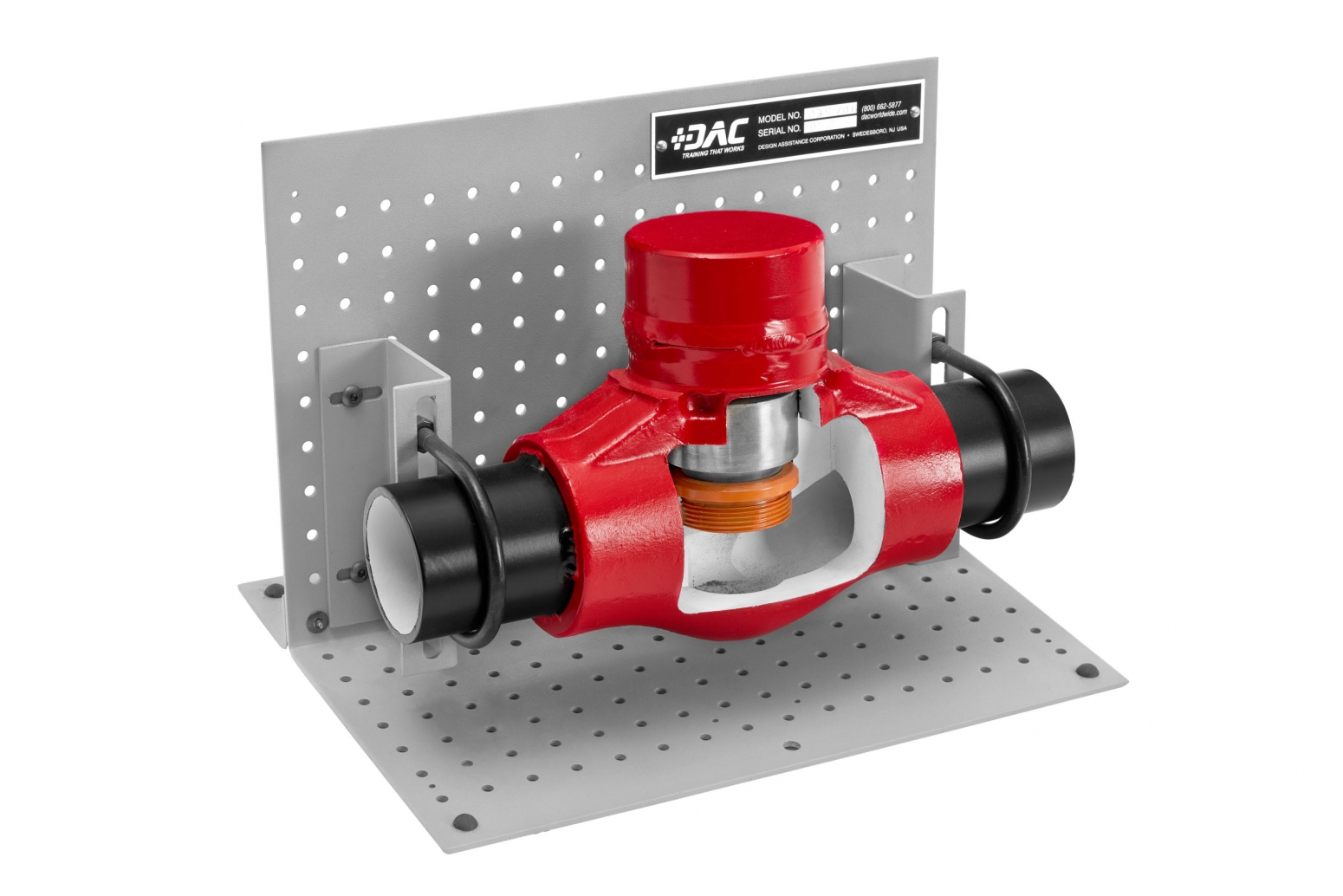

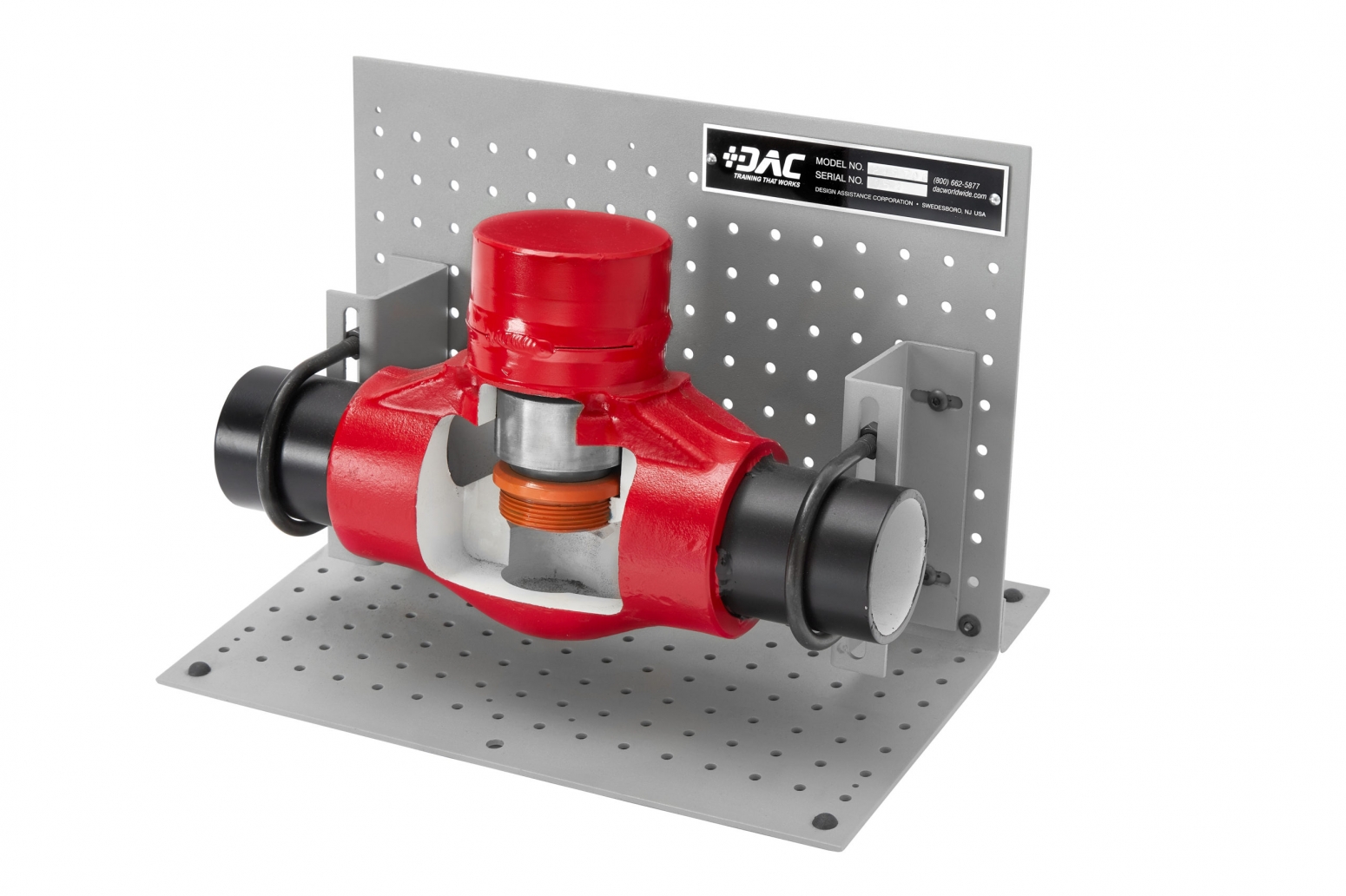

DAC Worldwide's Piston Check Valve Cutaway (295-706) is a sectioned valve sample for training in the operation, construction, and maintenance of industrial piston-type check valves. Through carefully planned sectioning and color-coding, the complete internal configuration of the valve is exposed and showcased. Seal features and hardware locations have been retained, allowing for “hands-on” training in maintenance. These welded-bonnet, socket-welded valves, commonly used in high-pressure oil & gas production applications would be of interest to those involved in oil & gas production operations and maintenance training.

Features & Specifications

Sectioning of actual hardware (common forged-steel valve makes and models chosen for industrial relevancy)
Disassembly, cleaning, priming, and painting using a high-durability, urethane coating
Color-coding of valve body, internal surfaces, seat, and closure devices, using contrast colors
Re-welding of bonnet to body
Seat clearly shown
13-gauge, formed-steel, mounting stand with provision for tabletop mounting and mounting on related display products
Provision for mounting on related DAC bench, workstation and storage rack products
Product Dimensions: 12.25" L x 8.5" W x 8.5" H
