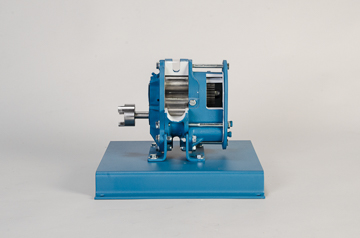

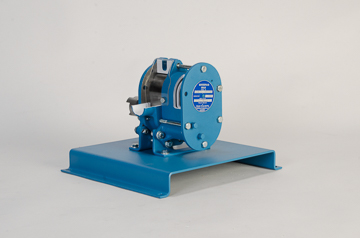

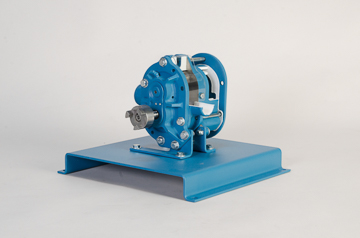

DAC Worldwide’s Positive Displacement Blower Cutaway, Rotary Lobe-Type (211-140) is a realistic, sectioned rotary lobe-type positive displacement compressor commonly found in petrochemical plants, refineries, and other industrial applications. The full-size, fully-detailed example gives learners a first-hand view into a component that is found in various applications worldwide.
This basic mechanical valve cutaway includes actual brass and bronze valve components, including a partition, rotors, sound absorbers and more. Through carefully planned sectioning, the complete internal configuration of this blower can be seen while allowing for disassembly for complete inspection and convenient classroom training in the operation, construction, and maintenance of these common pieces of mechanical equipment.
This Positive Displacement Blower Cutaway provides a realistic introduction to industrial displacement blowers, making introductory courses in blower maintenance and operation more productive, realistic, and memorable for learners. The Positive Displacement Blower components are industrial-grade, mimicking what students might encounter on the job. The device also sits on a 10-gauge steel baseplate, allowing for stand-alone display, benchtop mounting, or mounting on specialized mounting benches.
The cutaway features carefully-planned cutaway areas that are individually mounted and possess the ability to be removed from the baseplate for convenient classroom use. All of the cutaway’s components are also visible and have been retained, enhancing students’ visual learning. Replacement hardware is provided where appropriate.
The equipment used within the trainer is cleaned, primed, and painted using a high-endurance urethane coating, providing durability to stand up to frequent use. In addition, all of the parts are color coded to enhance the learning process.
Visit DAC Worldwide for more information on the training models available.
DAC Worldwide’s Gate Valve Cutaway (251) features an actual industrial gate valve with the complete internal configuration exposed and seal features and hardware locations retained to provide gate valve maintenance training, as well as show how the valve operates and how it is constructed.
DAC Worldwide’s Positive Displacement Compressor Cutaway, Piston-Type (211-110) is a realistic, sectioned, piston-type positive displacement compressor. Rather than a scale model, the cutaway is a piece of actual industrial hardware sourced from popular industrial makes and models. T
DAC Worldwide's Rotary Screw Compressor Cutaway (211-192) is a realistic, sectioned rotary screw compressor commonly found in manufacturing plants and other industrial applications. This device includes a 7-gauge formed-steel mounting baseplate, allowing for stand-alone use, bench-top mounting, or mounting on specialized DAC mounting workstations.
