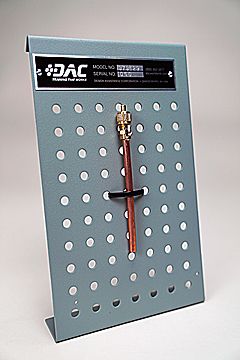

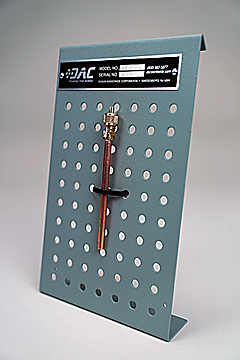

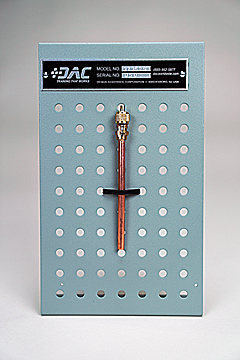

DAC Worldwide’s Schrader Service Valve Cutaway (373-529) is an economical, professionally-crafted specialty valve cutaway that supports training relating to Schrader valves, which are widely used for testing, servicing, and recharging within refrigeration and air-conditioning systems.

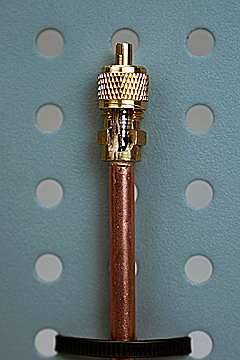

A full valve body cutaway unveils the complete valve core and spring allowing for visualization of the operating principle. Multiple cutaways unveil all internal components, which enhances classroom training in HVAC system design, maintenance, troubleshooting, and preventive/predictive maintenance.
The full-size, fully-detailed example gives learners a first-hand view into a component that is found in various applications worldwide. This professionally-crafted component sample will enhance any training activity relating to commercial and industrial air conditioning and refrigeration systems.
This Schrader Service Valve Cutaway provides a full cutaway view of a service valve that exposes the complete internal components and operating principles. The device can be used independently using an optional tabletop mounting foot or combined with similar devices on optional display and storage frame assemblies. An on-board valve driver and removal tool allow for further examination into the component’s disassembly.
The equipment used within the cutaway is cleaned, primed, and painted using a high-endurance urethane coating, providing durability to stand up to frequent use. In addition, all of the component parts are color-coded to enhance the learning process.
The cutaway features carefully-planned cutaway areas that are individually mounted, and possess the ability to be removed from the baseplate for convenient classroom use. All of the cutaway’s components are also visible and have been retained, enhancing students’ visual learning. This carefully-crafted teaching aid will support instructor-led training and independent student self-discovery in a variety of vocational and academic air conditioning and refrigeration programs.
The Schrader Service Valve Cutaway is only one of DAC Worldwide’s expansive HVAC training cutaways, which includes an ACR Solenoid Valve Cutaway (373-502), a Heat Pump Reversing Valve Cutaway (373-505), and ACR Magnetic Check Valve Cutaway (373-510), a Condenser Pressure Control Valve Cutaway (KVR) (373-519), and more!
DAC Worldwide's HVAC cutaways enhance learning by providing a look inside components found in most HVAC systems including compressors, solenoids, and valves. On many of DAC Worldwide's cutaways, functionality has been retained and a hand wheel provided to demonstrate low-speed manual operation. Each cutaway is mounted on a modular, heavy-gauge steel baseplate and support assembly. For industrial training relevance, common models by well-known manufacturers are chosen. View the pdf to see the cutaway trainers available.
DAC Worldwide’s ACR Solenoid Valve Cutaway is a sectioned example of a commonly-encountered solenoid valve used in air conditioning and refrigeration systems with a remotely-operated maintenance-related block valve, system fluid, or gas flow control valve.
This sectioned example showcases the device’s operating principle, internal components, and related installation concerns. Color coding, flow arrows, and numbered call-outs combine to make the device more informative to the inquiring student and more useful to the instructor.
This Condenser Pressure Control Valve (KVR) Cutaway provides a full cutaway view of a control valve that exposes the complete internal components and operating principles.
