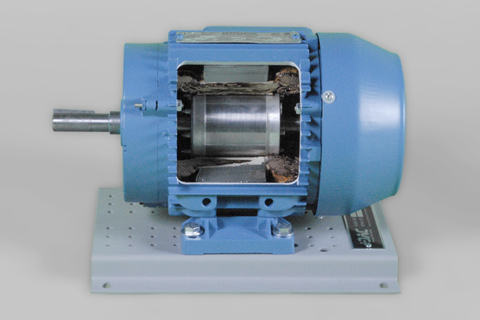

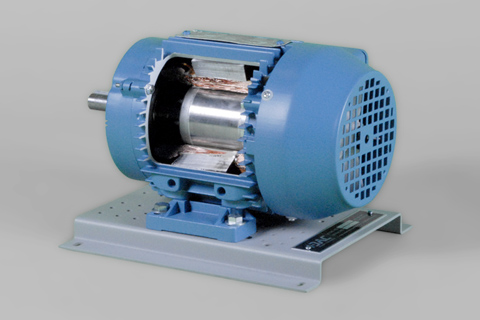

DAC Worldwide’s Three-Phase Squirrel-Cage AC Motor Cutaway (273-920) is one of a series of related sectioned industrial motors. This 3-phase, squirrel-cage, induction motor cutaway supports industrial training activities related to electric motor types, as well as repair and troubleshooting. An integral horsepower, industrial-duty motor is modified for training purposes.
3-Phase squirrel-cage motors are encountered in many industrial applications and are commonly the motive force in pumps, machine tools, mechanical drive trains, and other high starting torque and high running torque applications.

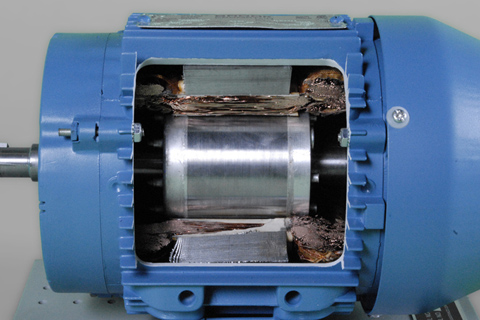

A full-length body and stator cutaway unveils the complete internal configuration of the motor while showcasing key features such as stator windings, wiring connections, fan blades, and squirrel-cage rotor design.
The cutaway includes a formed-steel mounting assembly, allowing for stand-alone display, bench-top mounting, or mounting on specialized DAC Worldwide mounting benches and support structures.
DAC Worldwide’s Three-Phase Transformer Cutaway (273-915) is a detailed and professionally-crafted three-phase transformer cutaway that depicts a common coaxially-wound, three-phase, delta-wye wired transformer.
DAC Worldwide’s Three-Phase, Squirrel Cage Rotor, AC Motor Training System (412-000) provides a starting point for understanding a common, widely-used industrial induction motor. These self-starting, 56 frame, simply constructed motors are used in applications like generators or where low starting torque is required.
The 3-phase, squirrel-cage, explosion-proof induction motor cutaway supports industrial training activities related to electric motor types, as well as repair and troubleshooting. An integral horsepower, industrial-duty motor is modified for training purposes.
