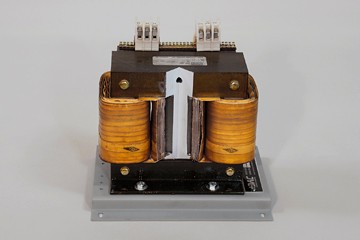

DAC Worldwide’s Three-Phase Transformer Cutaway (273-915) is a detailed and professionally-crafted three-phase transformer cutaway that depicts a common coaxially-wound, three-phase, delta-wye wired transformer. This common piece of electrical hardware is found in manufacturing facilities, petrochemical plants, refineries, and other similar industrial and commercial applications.
The cutaway includes a formed-steel mounting baseplate, allowing for stand-alone display, bench-top mounting, or mounting on specialized DAC Worldwide mounting benches and support structures.
Through careful sectioning, the complete internal configuration of the transformer can be seen. Details shown include laminated steel core, primary and secondary windings, and primary insulation.
This 3-phase, squirrel-cage, induction motor cutaway supports industrial training activities related to electric motor types, as well as repair and troubleshooting. An integral horsepower, industrial-duty motor is modified for training purposes.
This 3-phase, squirrel-cage, induction motor cutaway supports industrial training activities related to electric motor types, as well as repair and troubleshooting. An integral horsepower, industrial-duty motor is modified for training purposes.
The 3-phase, squirrel-cage, explosion-proof induction motor cutaway supports industrial training activities related to electric motor types, as well as repair and troubleshooting. An integral horsepower, industrial-duty motor is modified for training purposes.
