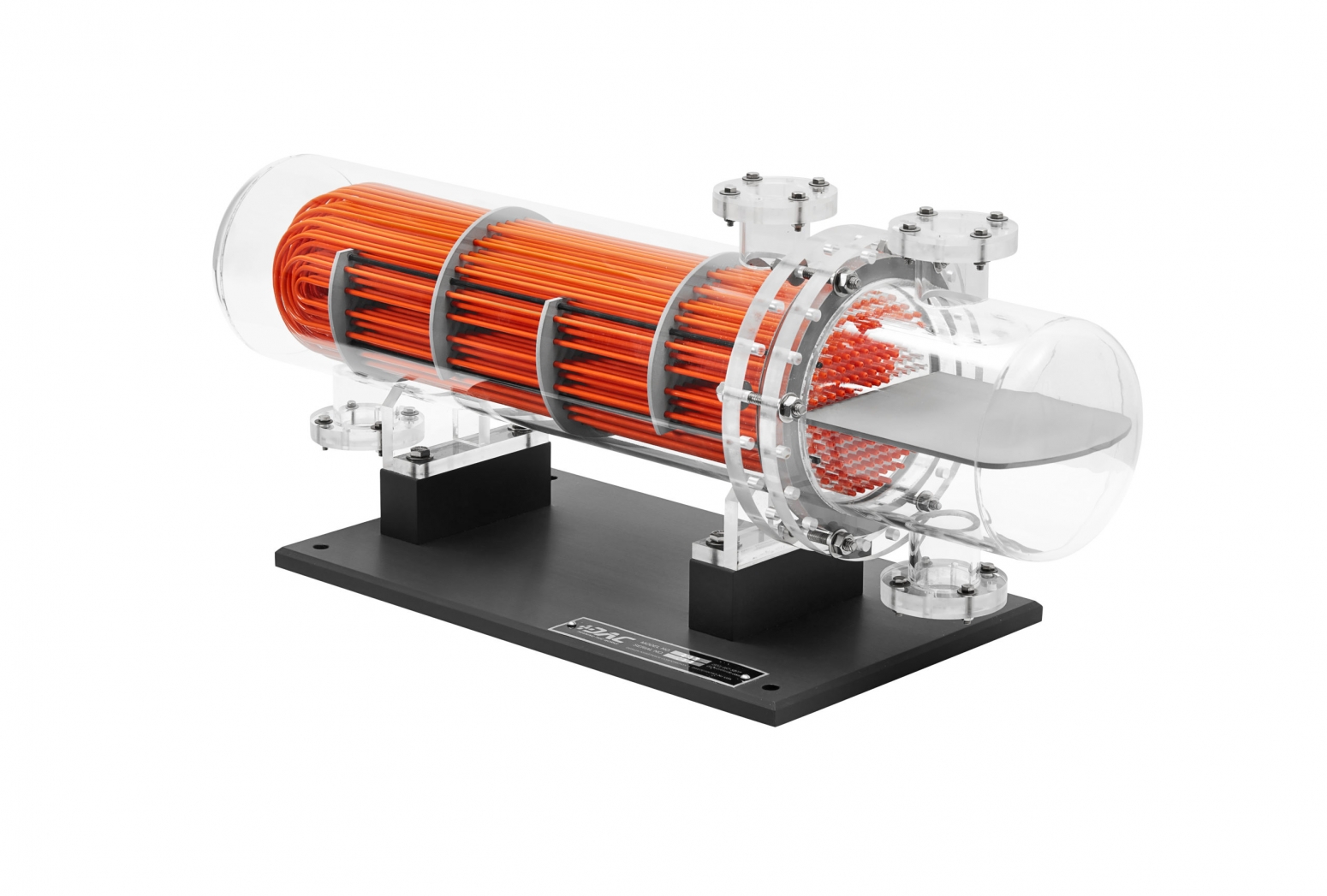

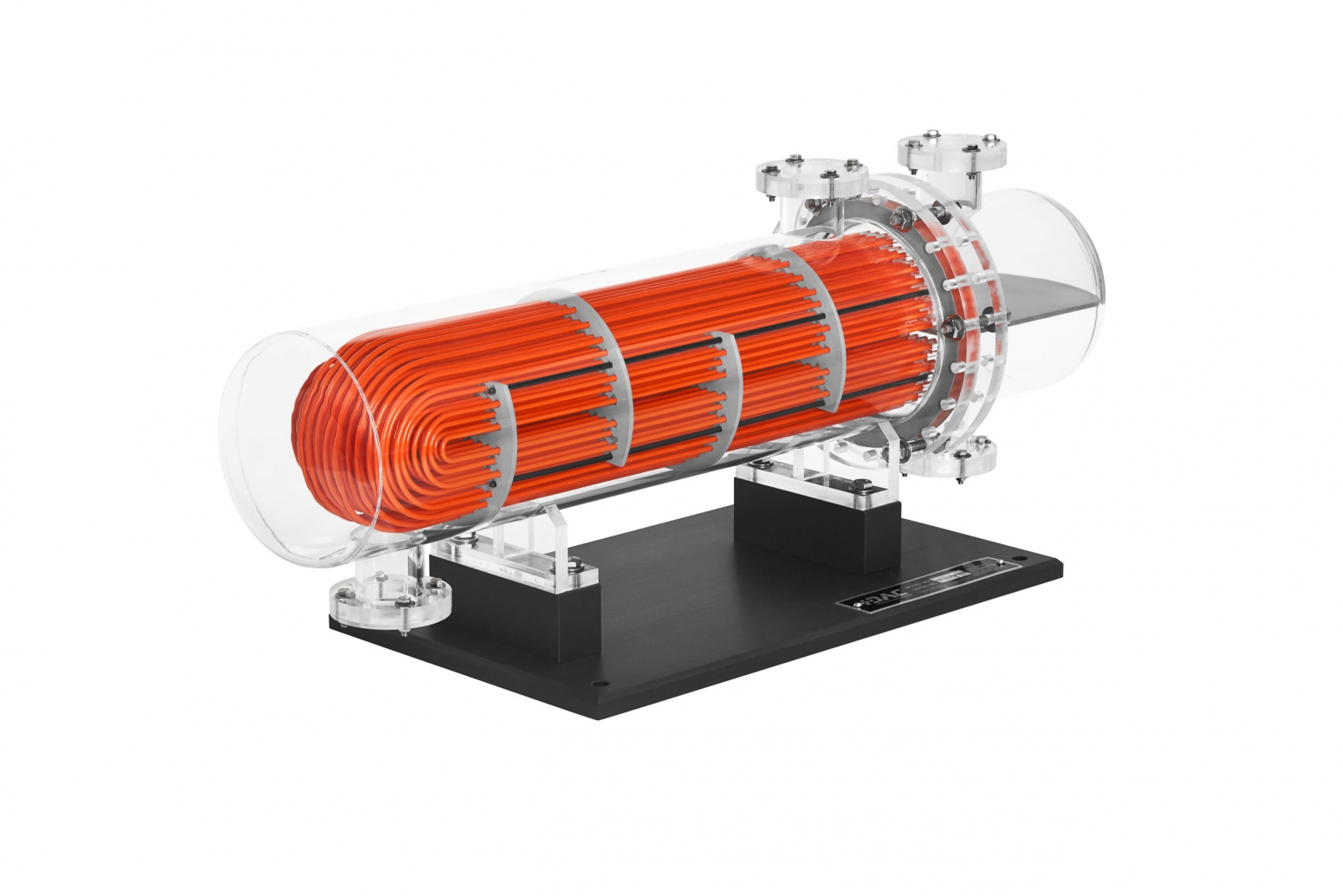

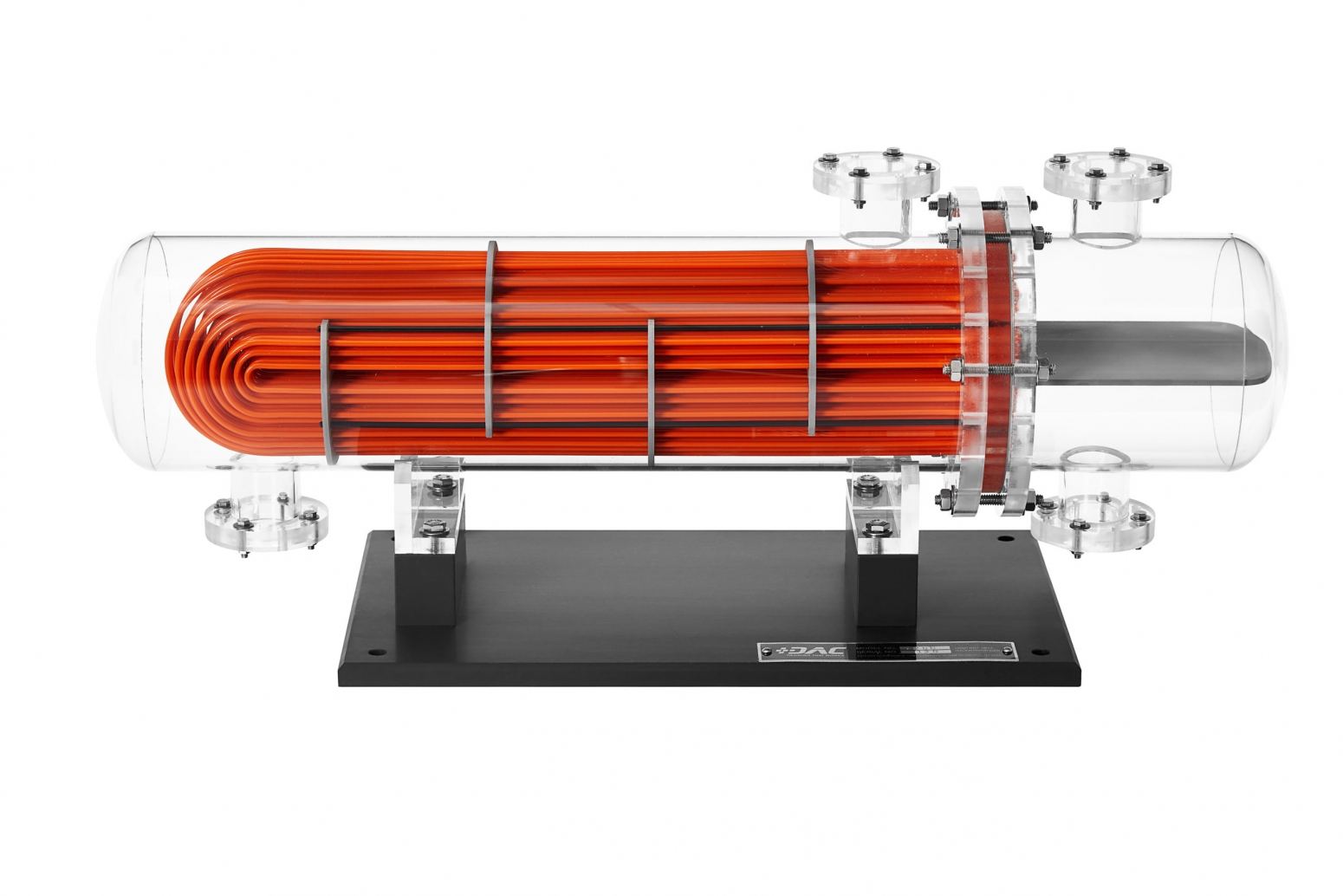

DAC Worldwide’s U-Tube Heat Exchanger Training Model (285) depicts a highly-detailed scale model of a common u-tube heat exchanger in a technically-accurate, professionally-crafted design. Based on a common make and model of a heat exchanger that reflects design standards established by the Tubular Exchanger Manufacturers Association (TEMA) and the ASME, this product is a complete to-scale replication of typical plate-type heat exchangers found in industry.
The model features clear acrylic components, a removable tube bundle, color coding, and realistic detail, which combine to make this a useful tool in both operations and maintenance training of industrial heat exchangers. The model can also be completely disassembled and incorporates cut-away areas illustrating the flow path.
This realistic mechanical model includes representative color-coded tubing, opaque representative gaskets, and many more industrial-grade component replicas. Learners will use these replicas to study topics such as the purpose of heat exchangers, the difference between co-current and counter-current flow arrangements, different exchanger types, and more.
DAC Worldwide’s hands-on models take learning to the next level, offering both visual and physical learning styles to appeal to a variety of learners.
This U-Tube Heat Exchanger Training Model features clear acrylic stationary ends, flanges, and nozzles, which allows complete visibility of internal components. In addition, seals of detailed plates are color-coded for visibility, and to show flow path. To ensure an ideal training experience, the model also includes a durable PVC base, with provisions for tabletop mounting. All of the construction throughout the model is to-scale, and the perfect 3-dimensional solution for engineering study, promotion, and training.
The U-Tube Heat Exchanger Training Model is only one of DAC Worldwide’s expansive mechanical training models, which also includes a Plate-Type Heat Exchanger Model (284), Multi-Pass Heat Exchanger Models (286 & 287), a Vertical Thermosyphon Reboiler Heat Exchanger Model (289), and many more!
DAC Worldwide’s Plate-Type Heat Exchanger Model (284) depicts a highly-detailed scale model of a common plate-type heat exchanger in a technically-accurate, professionally-crafted design. Based on a common make and model of a heat exchanger, the product is a complete to-scale replication of typical plate-type heat exchangers found in industry.
Tech-Labs technical training solutions.
DAC Worldwide's Vertical Thermosyphon Reboiler Heat Exchanger Training Model (289) is a highly-detailed scale model of a vertical thermosyphon reboiler, supporting training in the operation and maintenance of industrial heat exchangers.
