Vertical Thermosyphon Reboiler Heat Exchanger Training Model

Highly-Detailed Scale Model
DAC Models
Heat Transfer & Steam
Item Number:
289
DAC Heat Transfer & Steam
DAC Training Models

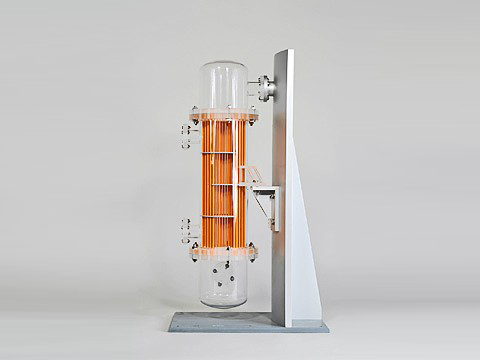

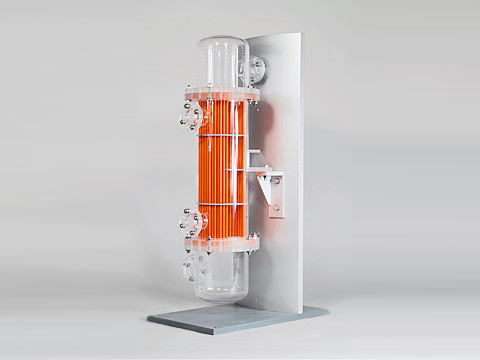

DAC Worldwide's Vertical Thermosyphon Reboiler Heat Exchanger Training Model (289) is a highly-detailed scale model of a vertical thermosyphon reboiler, supporting training in the operation and maintenance of industrial heat exchangers.

This model reflects design standards established by the Tubular Exchanger Manufacturers Association (TEMA) and the ASME. It is an accurate, to-scale replication of a typical heat exchanger found in industry. This model can be completely disassembled, and incorporates a clear acrylic shell.

Features & Specifications

  • Exact "to-scale" construction throughout (5" shell diameter).
  • Clear acrylic shell, flanges, and nozzles.
  • Contrasting opaque baffles and partitions.
  • Detailed tube bundles.
  • Representative, color-coded tubing for visibility and to show flow path.
  • Opaque representative gaskets.
  • Stainless steel hardware.
  • Durable PVC baseplate with provision for tabletop mounting, and mounting on related workstation and display rack products.
  • Product Dimensions 12-in. L x 12-in. W x 27-in. H
  • Weight 10 lbs.
