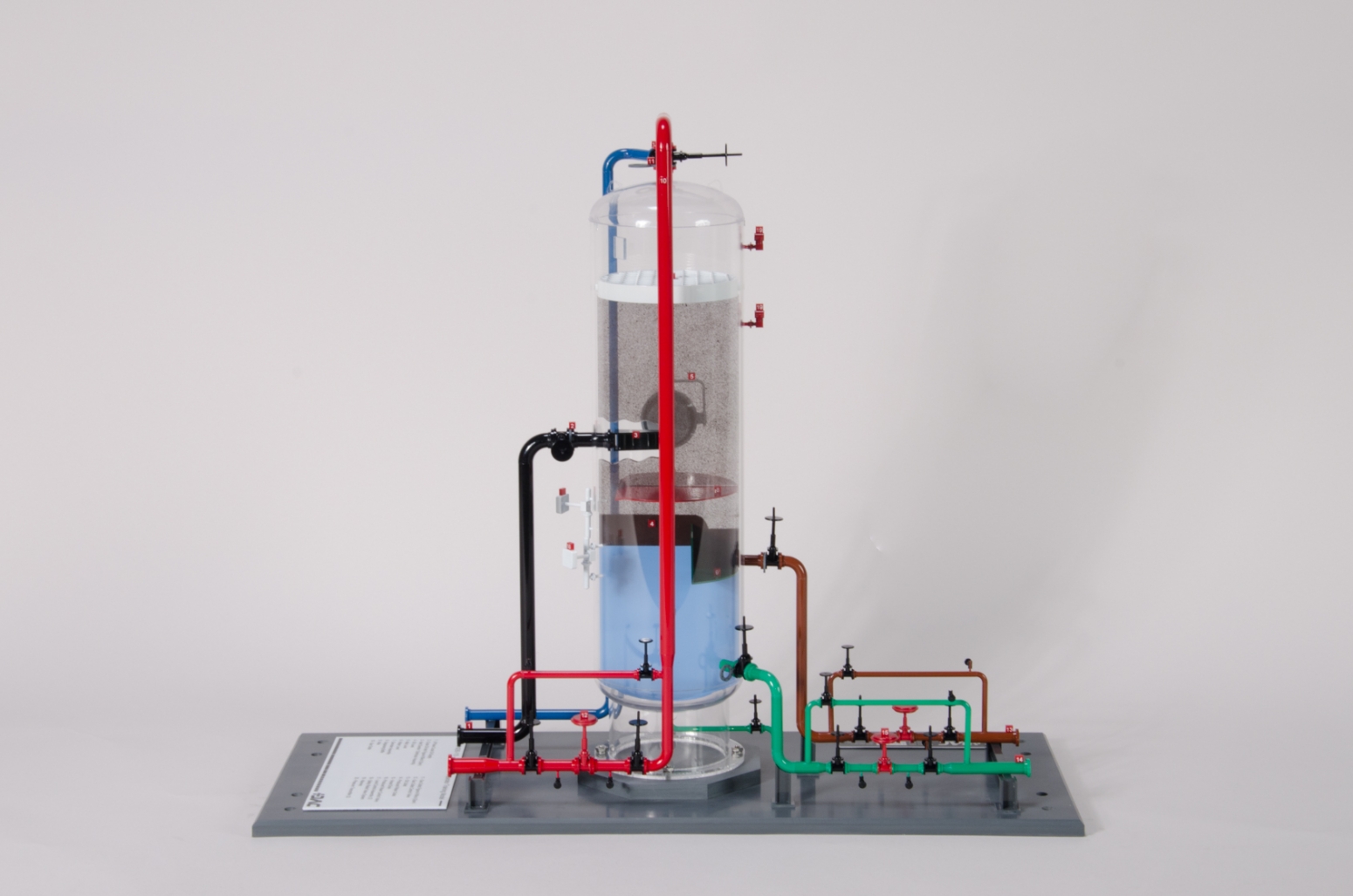

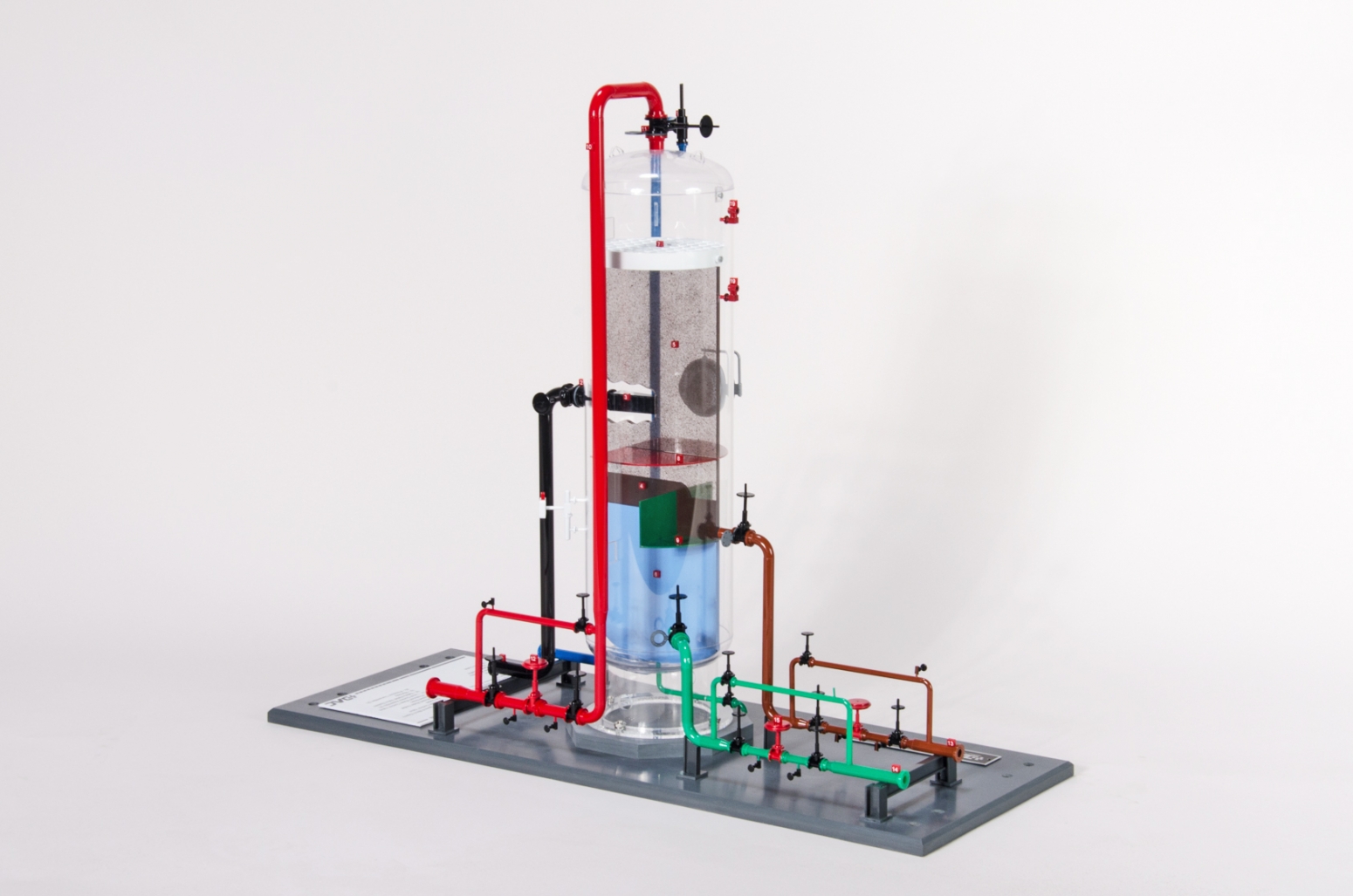

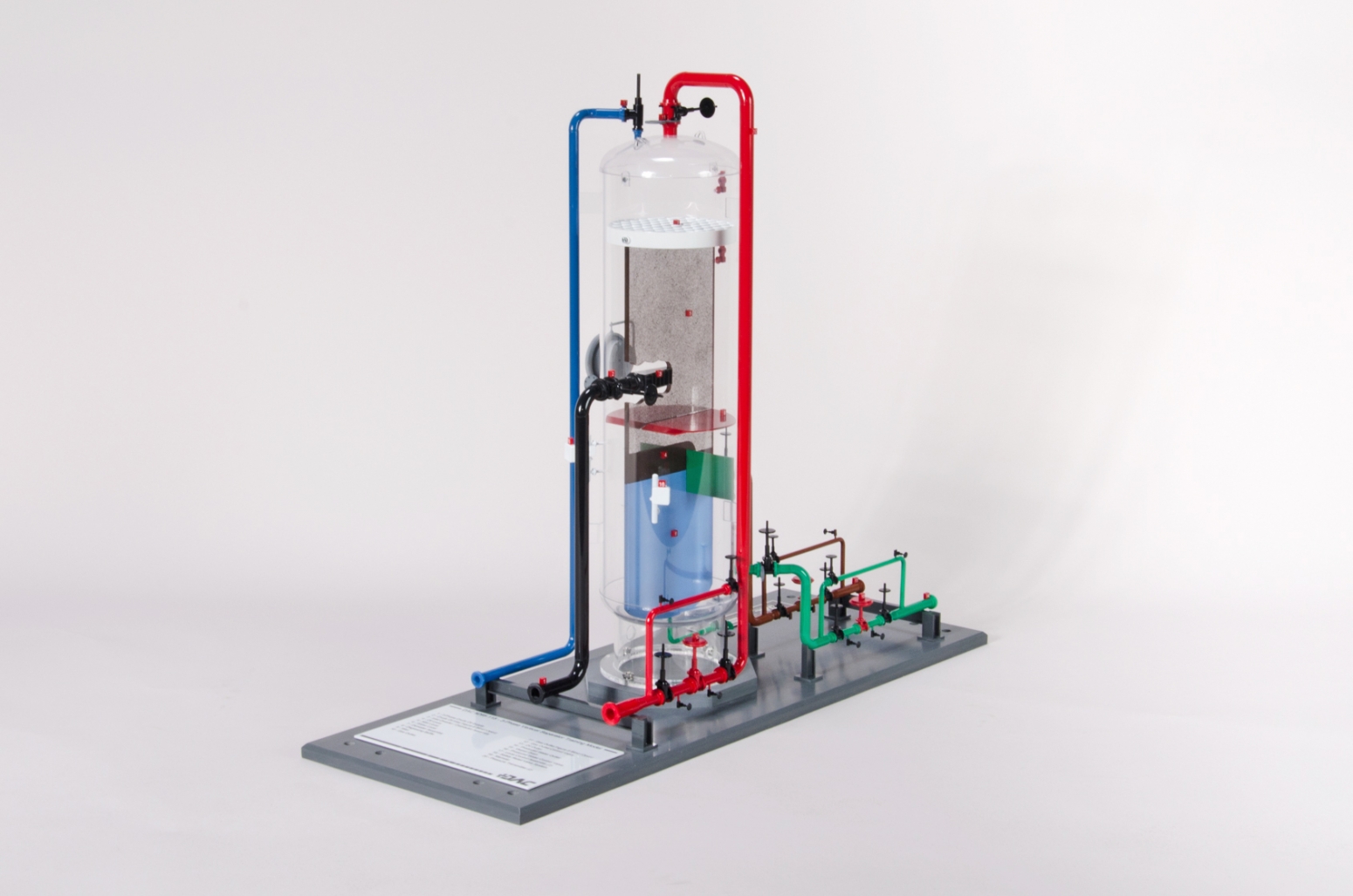

DAC Worldwide's Vertical Cross-Flow Separator Model (209) is a highly-detailed scale model of a common vertical cross-flow separator used throughout the oil and gas industry, as well as other processing, production, and refining applications.
This Vertical Cross-Flow Separator Model reflects common designs and is a complete, to-scale replica. The four-inch diameter outer shell is clear acrylic, allowing for easy viewing of water/oil levels using translucent film.

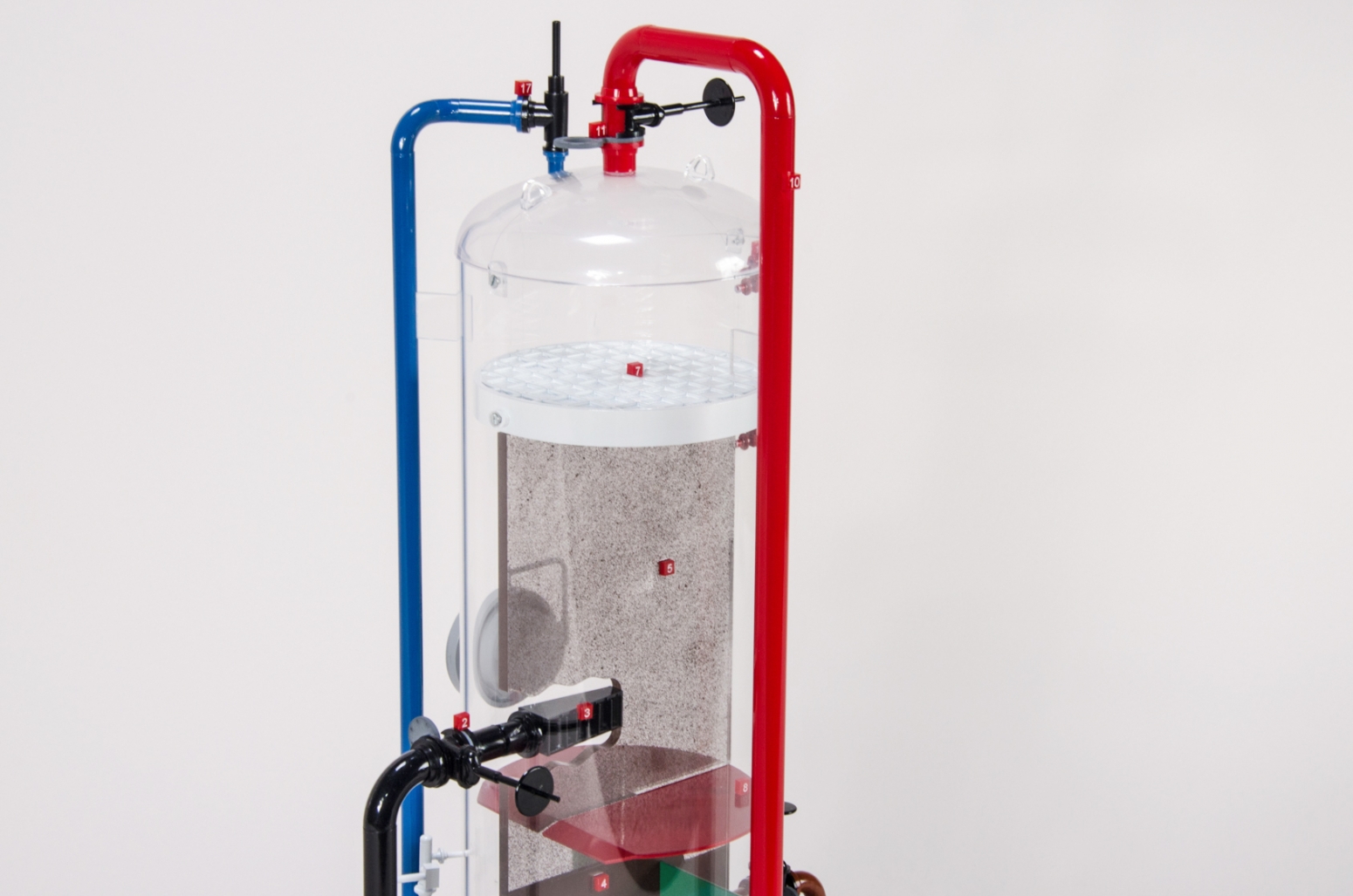

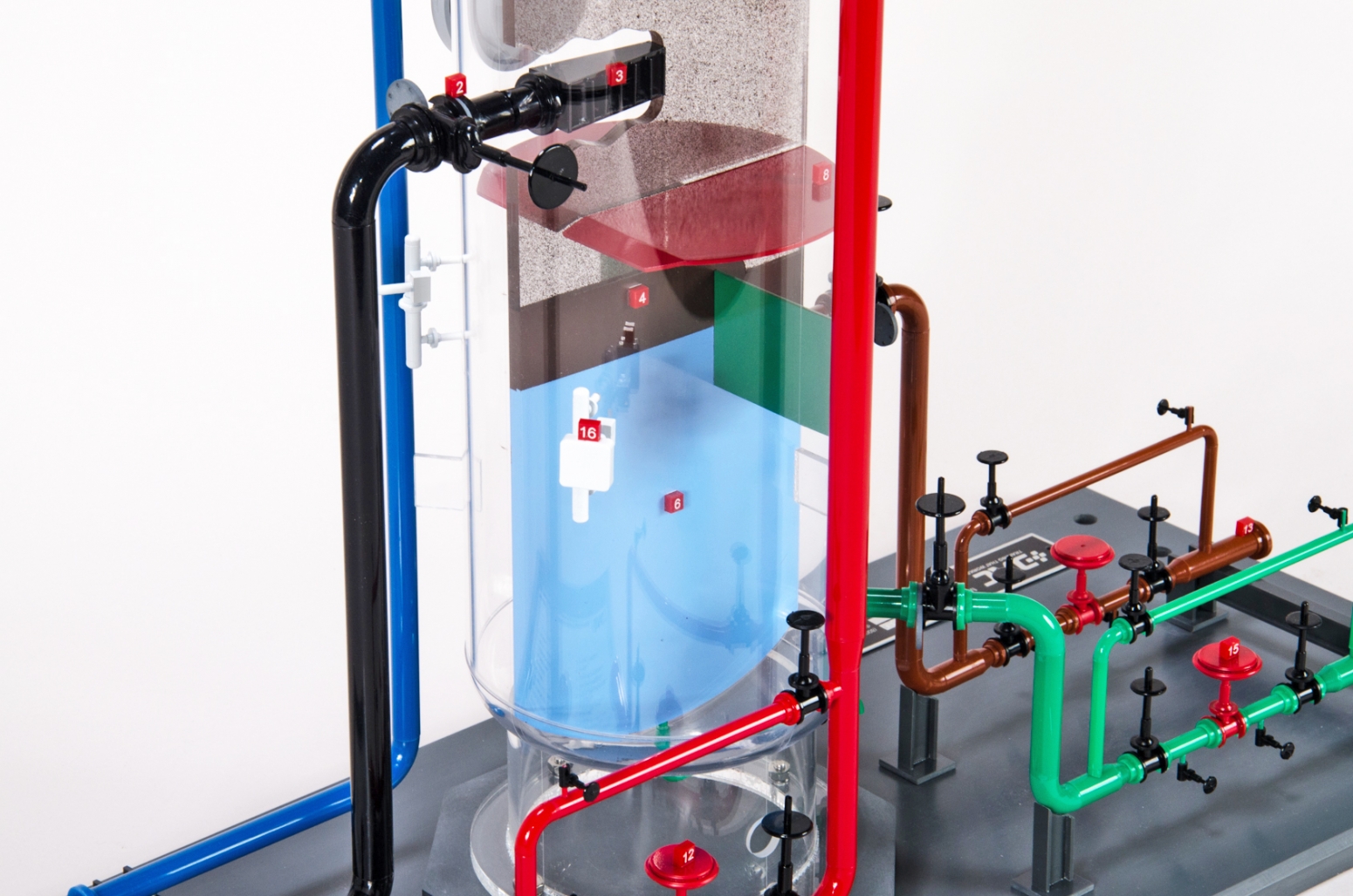

The Vertical Cross-Flow Separator Model supports operations and maintenance training programs relating to the oil and gas production and refining industries. Exterior details include relief valves, process connections, dump valve connections, sight glasses, manways, and support skirt details. Interior details include inlet diverters/baffles, demister assemblies, separation weirs, degassing baffles, liquid downcomers, and representative level instruments.
The model is mounted on a durable PVC baseplate/pedestal with provision for tabletop mounting or mounting on a related DAC Worldwide display rack.
The model features exact, "to-scale" construction throughout. Modeled components include a liquid knockout drum, heat exchangers, choke, separators, and connecting piping, as well as representative concrete foundations and equipment supports.
