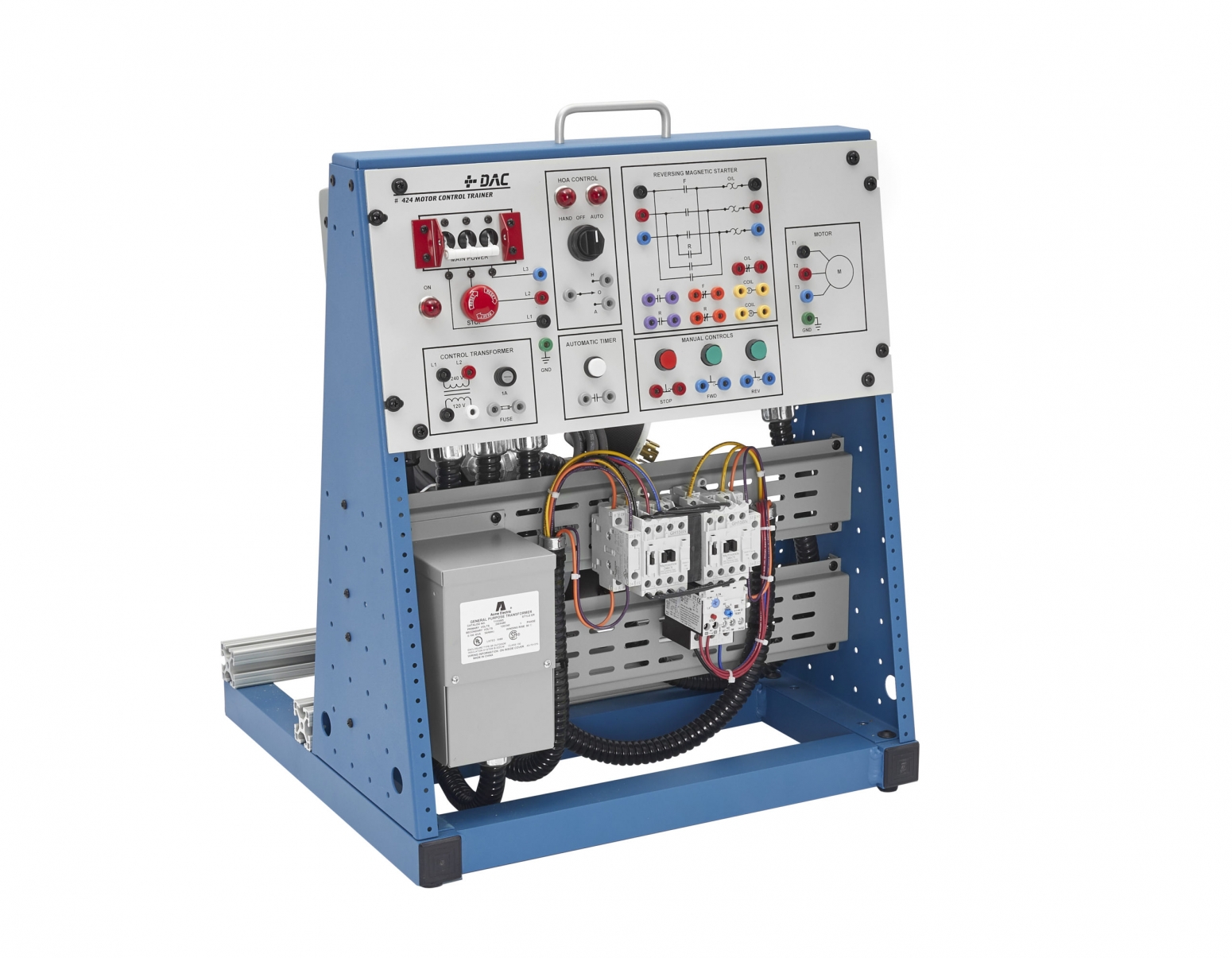

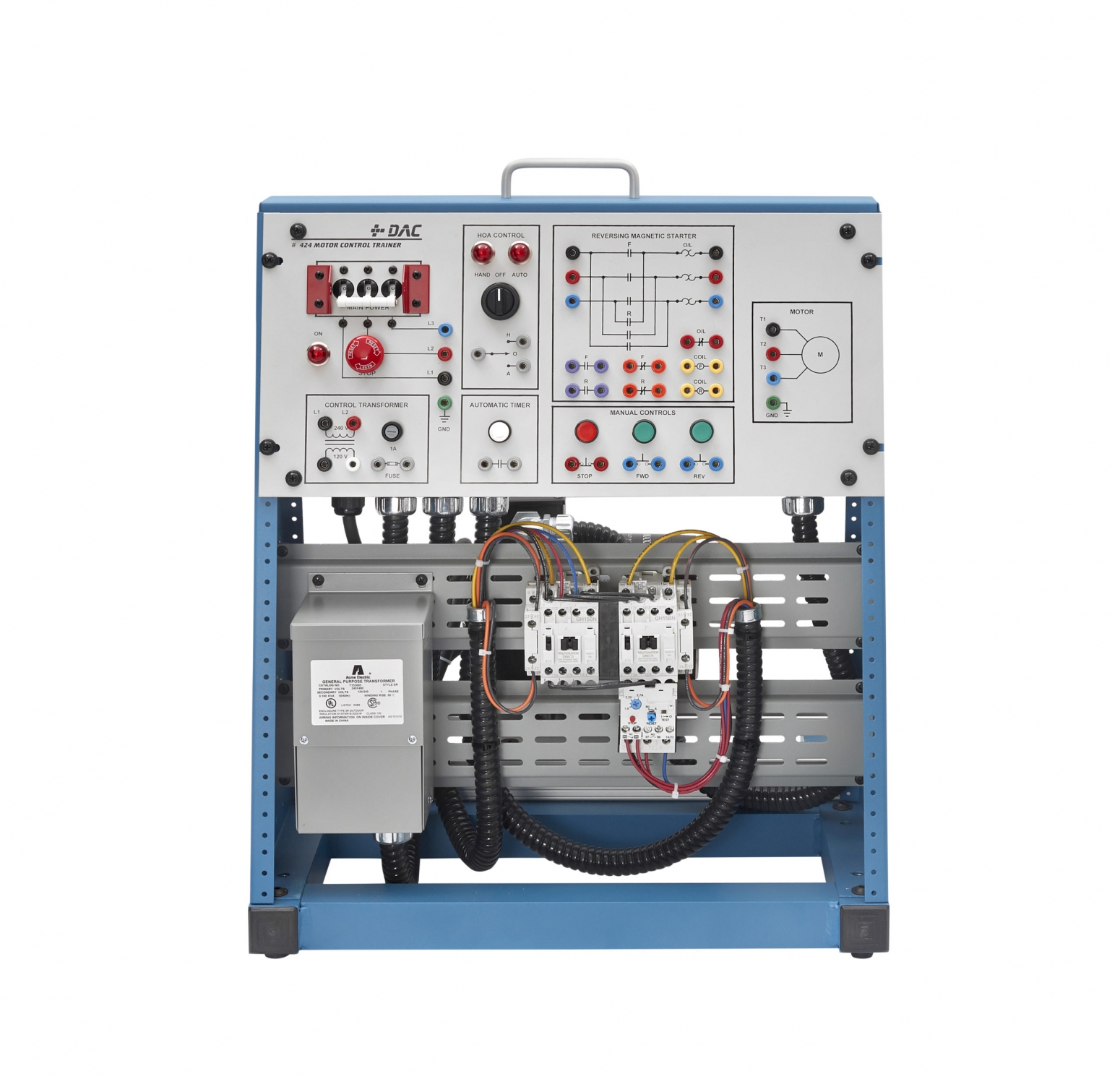

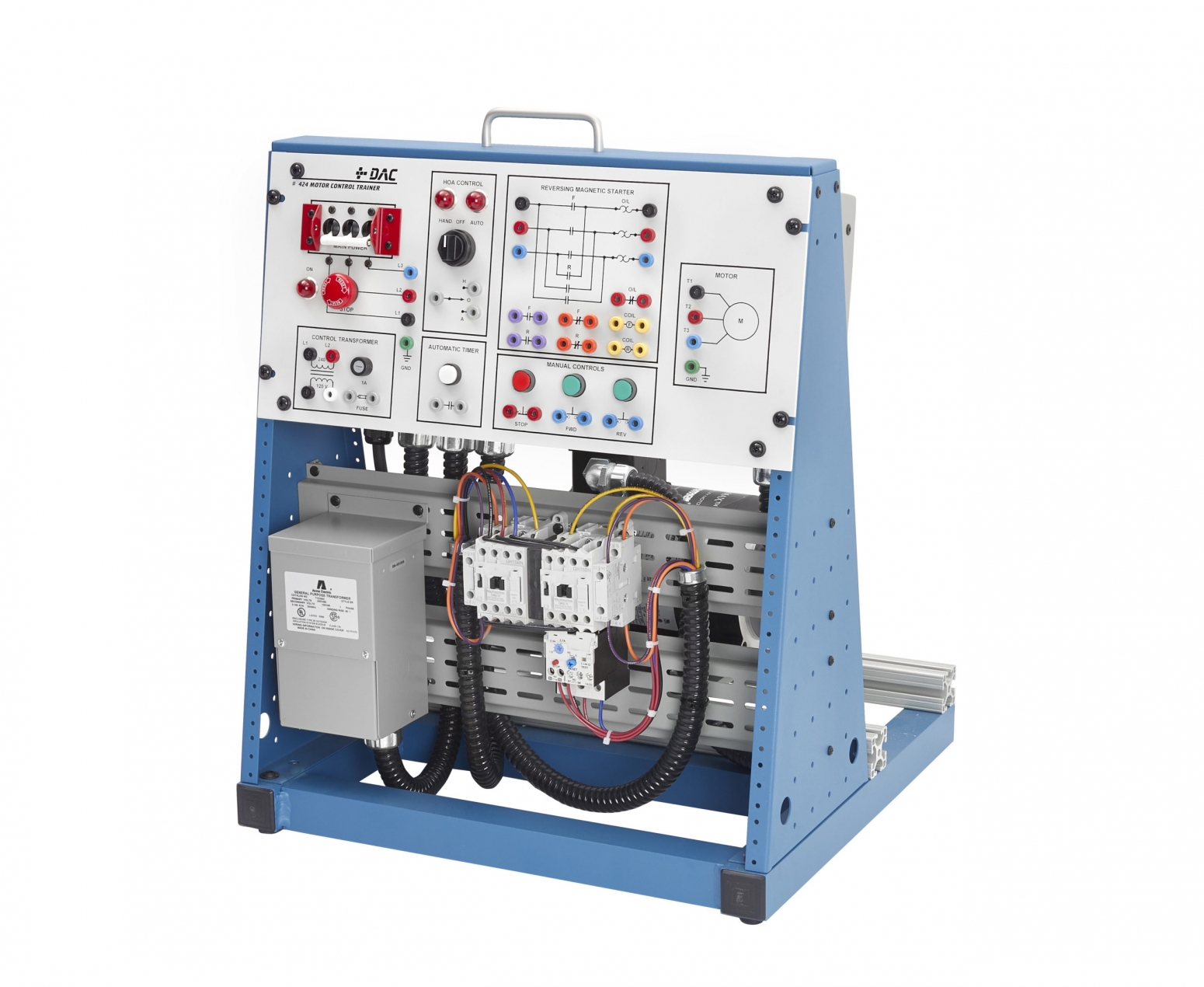

DAC Worldwide’s 3-Phase Motor Control Training System with Magnetic Starter, Low Voltage Start (424-000) is a motor control-related device for training in the operational principles, wiring, fault troubleshooting and application of industrial three-phase, reversing magnetic starters. The device is self-contained, allowing for individual study by a single student or a small student group. While often used independently, the training aid can be integrated with other products relating to PLCs, pilot devices, and motor-driven mechanical systems.
A key training element within a 7-trainer series of related motor control-focused products, this device is often used independently due to its concentration on the most common motor starter configurations seen in industry and its on-board selection of common piloting components.

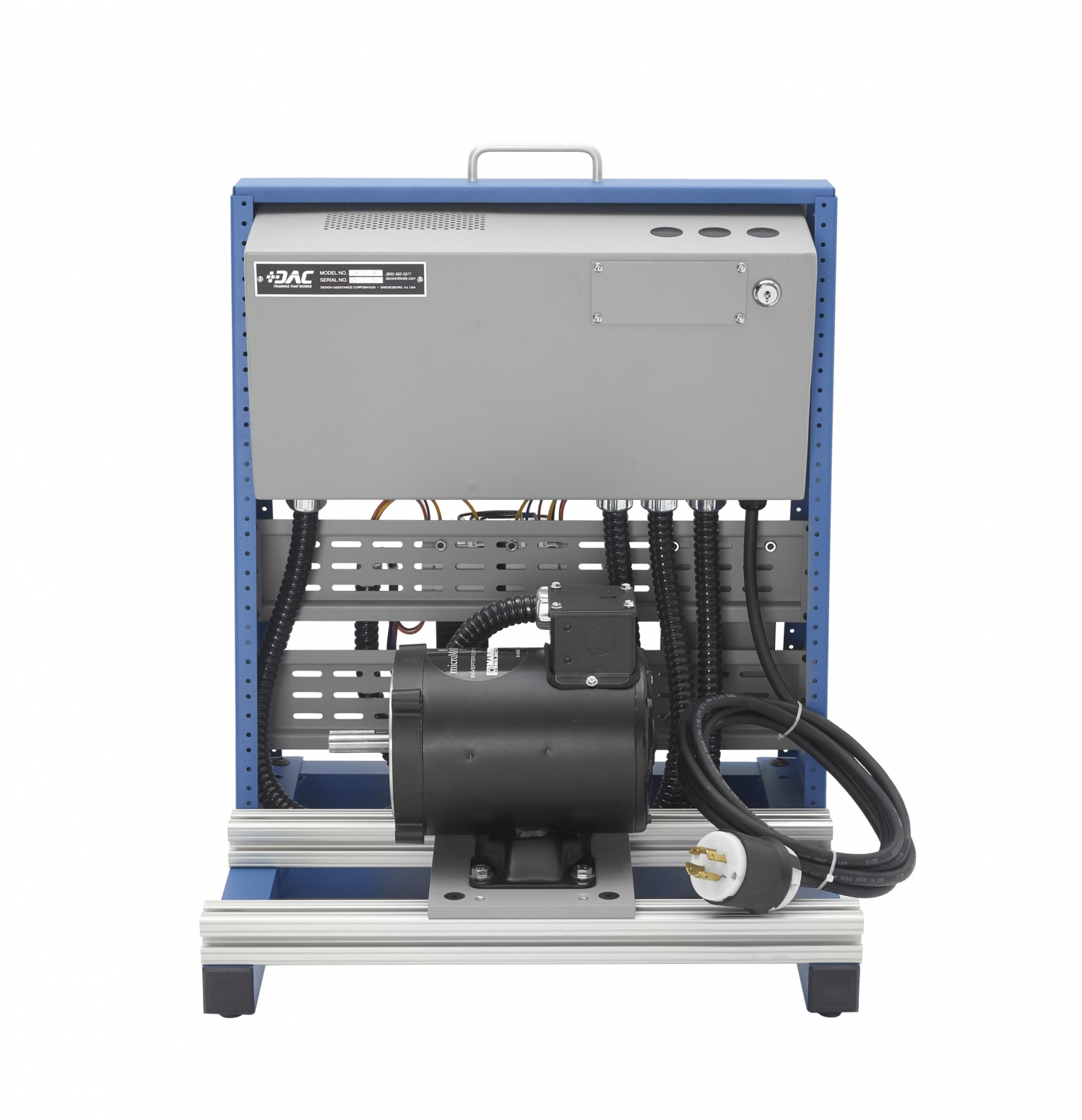

The training aid includes a welded aluminum base assembly, steel support structure and enclosure, aluminum motor mounting rails, and an applicable, industrial-duty, three-phase, squirrel-cage motor.
All wiring is accomplished through shielded banana-jack connections on the front panel face, rather than directly to individual components. Multiple safety systems are provided. Four instructor fault switches, creating common component faults, are provided. Supplemental components such as a motor loading device and a piloting switch module can be added to expand the system’s capabilities.
DAC Worlwide’s 3-Phase Motor Control Training System with Magnetic Starter (423-000) is a motor control-related device for training in the operational principles, wiring, fault troubleshooting, and application of industrial three-phase, reversing magnetic starters.
DAC Worldwide’s 3-Phase Motor Control Training System with Manual Starter (422-000) is a task-specific, motor control-related training device that allows for skill-building in the operational principles, circuit design, wiring, fault troubleshooting, and application of industrial three-phase, manual motor starters.
DAC Worldwide’s 1-Phase Motor Control Training System with Manual Starter (420-000) is a motor control-related device for training in the operational principles, wiring, fault troubleshooting, and application of industrial single-phase, manual (across the line) starters.
